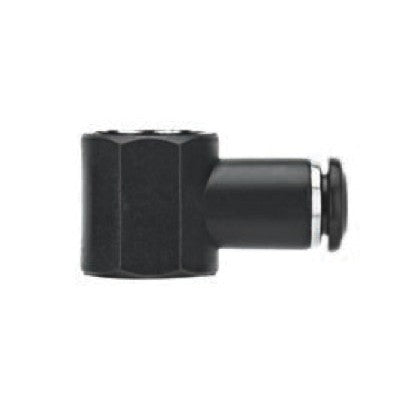

55500-6-1/4" AIGNEP | 55/56 Series | Single Banjo Body Composite Metric | 5mm Tube x 1/4" Stem | Pack of 10

55500-6-1/4 by AIGNEP | 55/56 Series | Single Banjo Body Composite Metric | 5mm Tube x 1/4" Stem | Pack of 10

Save $0.07

$8.14

$8.14 - $8.14

$8.14

$8.07

$8.07 - $8.07

$8.07

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 55500-6-1/4 AIGNEP \| 10 \|
Series:	55/56 Series
Shape (Orientation):	Banjo
Ends Configuration:	5mm Push-to-Connect, 1/4in Female Banjo
Material(s):	Nylon

Single Banjo Body Composite Metric

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

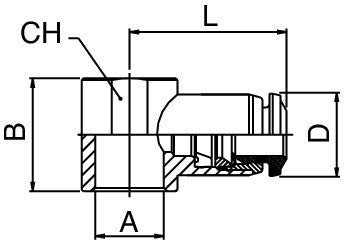

Product Number	Tube	A	B	L	CH	D
55500-4-M5	4 mm	M5	14 mm	19.5 mm	9 mm	10 mm
55500-4-M6	4 mm	M6	14 mm	19.5 mm	9 mm	10 mm
55500-4-1/8	4 mm	1/8"	16.5 mm	21.5 mm	14 mm	10 mm
55500-5-M5	5 mm	M5	14 mm	20.5 mm	9 mm	12 mm
55500-5-M6	5 mm	M6	14 mm	20.5 mm	9 mm	12 mm
55500-5-1/8	5 mm	1/8"	16.5 mm	22.5 mm	14 mm	12 mm
55500-5-1/4	5 mm	1/4"	18.5 mm	25 mm	18 mm	12 mm
55500-6-M5	6 mm	M5	14 mm	21 mm	9 mm	12 mm
55500-6-M6	6 mm	M6	14 mm	21 mm	9 mm	12 mm
55500-6-1/8	6 mm	1/8"	16.5 mm	23 mm	14 mm	12 mm
55500-6-1/4	6 mm	1/4"	18.5 mm	25.5 mm	18 mm	12 mm
55500-8-1/8	8 mm	1/8"	16.5 mm	23.5 mm	14 mm	14 mm
55500-8-1/4	8 mm	1/4"	18.5 mm	26 mm	18 mm	14 mm
55500-8-3/8	8 mm	3/8"	22 mm	27.5 mm	21 mm	14 mm
55500-10-3/8	10 mm	3/8"	22 mm	30.5 mm	21 mm	17 mm
55500-12-3/8	12 mm	3/8"	22 mm	32.5 mm	21 mm	20 mm
55500-12-1/2	12 mm	1/2"	26 mm	35 mm	26 mm	20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
