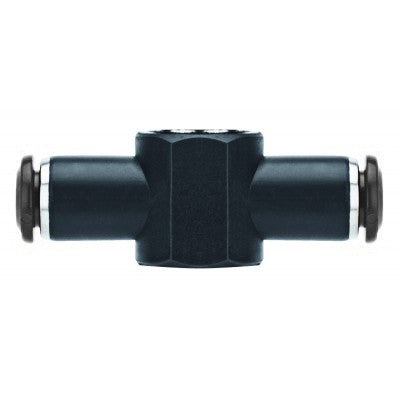

55510-8-1/4" AIGNEP | 55/56 Series | Double Banjo | 8mm (5/16") Tube x 1/4" Stem

55510-8-1/4 by AIGNEP | 55/56 Series | Double Banjo | 8mm (5/16") Tube x 1/4" Stem

Save $0.02 Save $0.02
$1.69
$1.69 - $1.69
$1.69
$1.67
$1.67 - $1.67
$1.67
Specifications for Variant SKU: 55510-8-1/4 AIGNEP
Series: 55/56 Series
Shape (Orientation): Straight
Ends Configuration: 8mm Push-to-Connect, 1/4in Male Banjo
Material(s): Plastic

Double Banjo Body Composite Metric

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

Product Number Tube A B L CH D
55510-4-M5 4 mm M5 14 mm 39 mm 9 mm 10 mm
55510-4-1/8 4 mm 1/8" 16.5 mm 43 mm 14 mm 10 mm
55510-5-1/8 5 mm 1/8" 16.5 mm 45 mm 14 mm 12 mm
55510-5-1/4 5 mm 1/4" 18.5 mm 50 mm 18 mm 12 mm
55510-6-1/8 6 mm 1/8" 16.5 mm 46 mm 14 mm 12 mm
55510-6-1/4 6 mm 1/4" 18.5 mm 51 mm 18 mm 12 mm
55510-8-1/8 8 mm 1/8" 16.5 mm 47 mm 14 mm 14 mm
55510-8-1/4 8 mm 1/4" 18.5 mm 52 mm 18 mm 14 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
