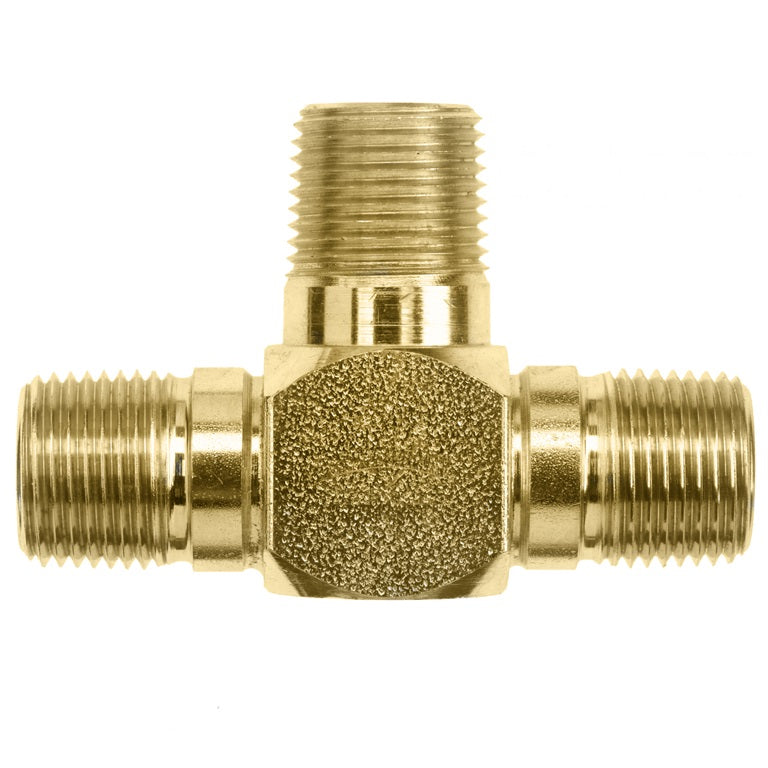

5600-04-04-04-B by Brennan Inc. | -04 Male Pipe x -04 Male Pipe x -04 Male Pipe | Tee | as coded per SAE J846 | Brass

5600-04-04-04-B by Brennan Inc. | -04 Male Pipe x -04 Male Pipe x -04 Male Pipe | Tee | as coded per SAE J846 | Brass

$7.53 - $7.53
$7.53
$7.96
$7.96 - $7.96
$7.96

Brennan Inc.
Tube Fittings & Adapters: 5600 - Male Pipe x Male Pipe x Male Pipe Tee (as coded per SAE J846)

Specifications for Variant SKU: 5600-04-04-04-B Brennan
Shape (Orientation): Tee
Ends Configuration: 1/4in Male NPTF, 1/4in Male NPTF, 1/4in Male NPTF, Some Ends Match
Material(s): Brass
Part Number Material A1
NPTF		 A2
NPTF		 A3
NPTF		 A1
Drill		 A2
Drill		 A3
Drill		 N1
Length		 N2
Length		 N3
Length		 Y
Flats
5600-02-02-02-FG Forged Steel 1/8-27" 1/8-27" 1/8-27" 0.188" 0.188" 0.188" 0.780" 0.780" 0.780" 0.438"
5600-04-04-04-FG Forged Steel 1/4-18" 1/4-18" 1/4-18" 0.281" 0.281" 0.281" 1.090" 1.090" 1.090" 0.562"
5600-06-06-06-FG Forged Steel 3/8-18" 3/8-18" 3/8-18" 0.406" 0.406" 0.406" 1.220" 1.220" 1.220" 0.750"
5600-08-08-08-FG Forged Steel 1/2-14" 1/2-14" 1/2-14" 0.531" 0.531" 0.531" 1.470" 1.470" 1.470" 0.875"
5600-12-12-12-FG Forged Steel 3/4-14" 3/4-14" 3/4-14" 0.719" 0.719" 0.719" 1.590" 1.590" 1.590" 1.062"
5600-16-16-16-FG Forged Steel 1-11-1/2" 1-11-1/2" 1-11-1/2" 0.938" 0.938" 0.938" 1.970" 1.970" 1.970" 1.312"
5600-20-20-20-FG Forged Steel 1-1/4-11-1/2" 1-1/4-11-1/2" 1-1/4-11-1/2" 1.250" 1.250" 1.250" 2.380" 2.380" 2.380" 1.625"
5600-24-24-24-FG Forged Steel 1-1/2-11-1/2" 1-1/2-11-1/2" 1-1/2-11-1/2" 1.500" 1.500" 1.500" 2.640" 2.640" 2.640" 1.875"
5600-32-32-32-FG Forged Steel 2-11-1/2" 2-11-1/2" 2-11-1/2" 1.938" 1.938" 1.938" 3.000" 3.000" 3.000" 2.500"

5600-04-04-04-B Brass 1/4-18" 1/4-18" 1/4-18" 0.281" 0.281" 0.281" 1.090" 1.090" 1.090" 0.562"

5600-02-02-02-SS Stainless Steel 1/8-27" 1/8-27" 1/8-27" 0.188" 0.188" 0.188" 0.780" 0.780" 0.780" 0.438"
5600-04-04-04-SS Stainless Steel 1/4-18" 1/4-18" 1/4-18" 0.281" 0.281" 0.281" 1.090" 1.090" 1.090" 0.562"
5600-06-06-06-SS Stainless Steel 3/8-18" 3/8-18" 3/8-18" 0.406" 0.406" 0.406" 1.220" 1.220" 1.220" 0.750"
5600-08-08-08-SS Stainless Steel 1/2-14" 1/2-14" 1/2-14" 0.531" 0.531" 0.531" 1.470" 1.470" 1.470" 0.875"
5600-12-12-12-SS Stainless Steel 3/4-14" 3/4-14" 3/4-14" 0.719" 0.719" 0.719" 1.590" 1.590" 1.590" 1.062"
5600-16-16-16-SS Stainless Steel 1-11-1/2" 1-11-1/2" 1-11-1/2" 0.938" 0.938" 0.938" 1.970" 1.970" 1.970" 1.312"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
