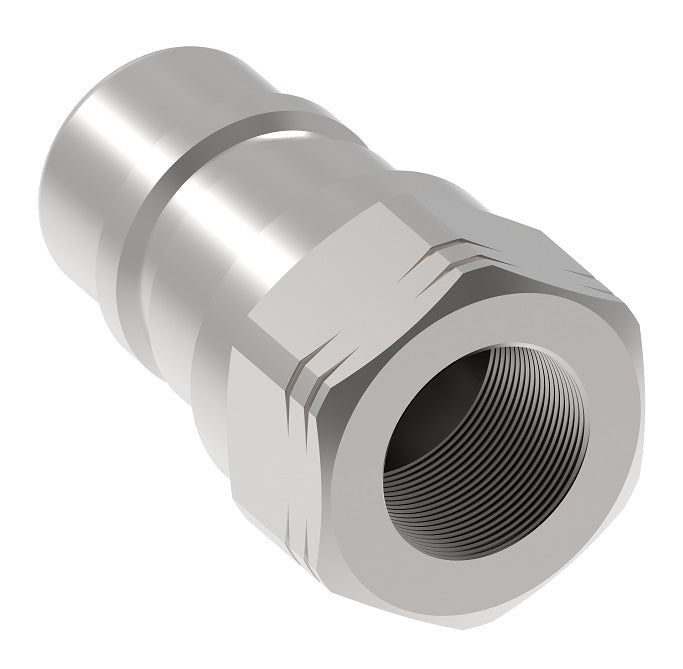

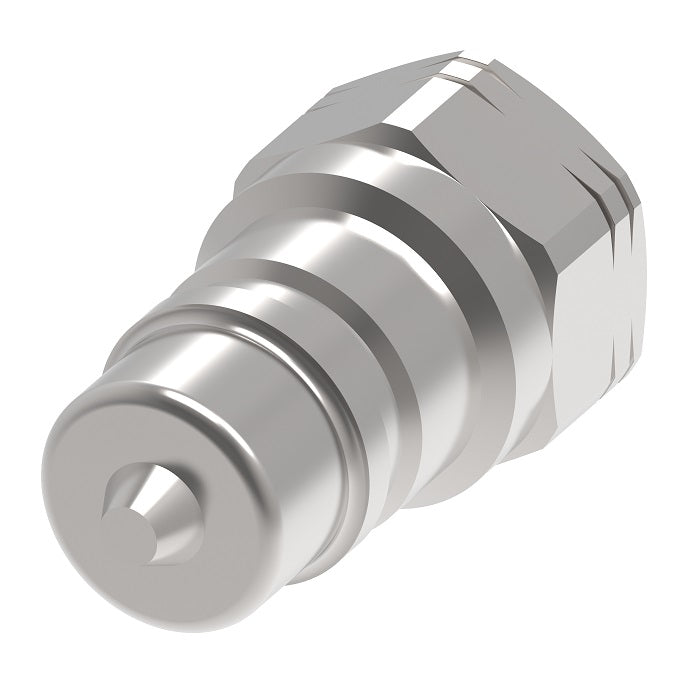

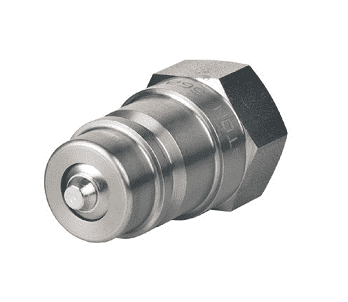

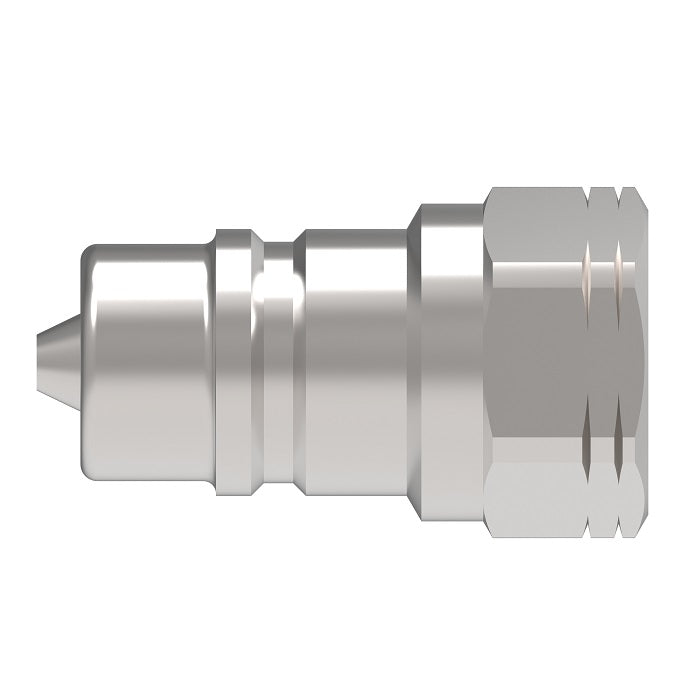

560049-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Plug | Buna-N Seal | Stainless Steel

560049-12-12 Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPTF x 3/4" ISO 7241 Type A | Plug | Buna-N Seal | Stainless Steel

$161.29 - $161.29

$161.29

$161.29 - $161.29

$161.29

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPTF

Fluid Transfer and Hydraulic Quick Disconnect Coupling

The Danfoss Hansen 5600 Series is a rugged poppet style ball locking quick disconnect coupling.

Quantity

Specifications for Variant SKU: 560049-12-12 Danfoss
Brand:	Hansen
Series:	5600 Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPTF, 3/4in ISO-A QD Interchange
Material(s):	303 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

Product Features:	Self-sealing poppet valve provides excellent high and low pressure sealing. Stainless steel construction offers excellent corrosion resistance in tough environments.
Applications & Markets:	Hydraulic fluid transfer Agricultural equipment Construction equipment Steel Mills Plant Manufacturing and Processing Equipment Dump, snow plow and maintenance vehicles
ISO Standard:	Meets dimensional requirements to ISO standard 7241-1 Series A.
Materials:	Standard Seal Material: Nitrile (NBR) Standard Body Material: 303 Stainless Steel

Body Size	Max. Operating Pressure Connected		Minimum Burst Pressure		Rated Flow		Air Inclusion	Fluid Loss
in	bar	psi	bar	psi	lpm	gpm	cc.max.	cc.max.
5/8	207	3,000	621	9,000	45	12	2.8	2.8
3/4	207	3,000	621	9,000	106	28	10	8.2
1	207	3,000	621	9,000	189	50	14.2	14.2


Socket/Female (Figure 1)			Plug/Male (Figure 2)				Complete (Figure 3)
Dimensions (Female NPTF)
Buna-N Part Number	Coupling Type	Body Size	Thread	Figure	Dimensions
					A		B		Hex 1
					mm	in	mm	in	mm	in
560024-8-10	Socket/Female	5/8"	1/2-14 NPTF	1	66.3mm	2.61"	38.1mm	1.5"	30.2mm	1.19"
560049-8-10	Plug/Male	5/8"	1/2-14 NPTF	2	51.3mm	2.02"	-	-	26.9mm	1.06"

560024-12-12	Socket/Female	3/4"	3/4-14 NPTF	1	82.6mm	3.25"	46.0mm	1.81"	38.1mm	1.50"
560049-12-12	Plug/Male	3/4"	3/4-14 NPTF	2	64.8mm	2.55"	-	-	35.1mm	1.38"
FD56-1001-12-12	Complete	5/8"	1/2-14 NPTF	3	96.0mm	3.78"	-	-	-	-

560024-16-16	Socket/Female	1"	1-11-1/2 NPTF	1	97.0mm	3.82"	53.3mm	2.1"	42.9mm	1.69"
560049-16-16	Plug/Male	1"	1-11-1/2 NPTF	2	78.7mm	3.1"	-	-	41.1mm	1.62"
FD56-1001-16-16	Complete	1"	1-11-1/2	3	123.4mm	4.86"	-	-	-	-
