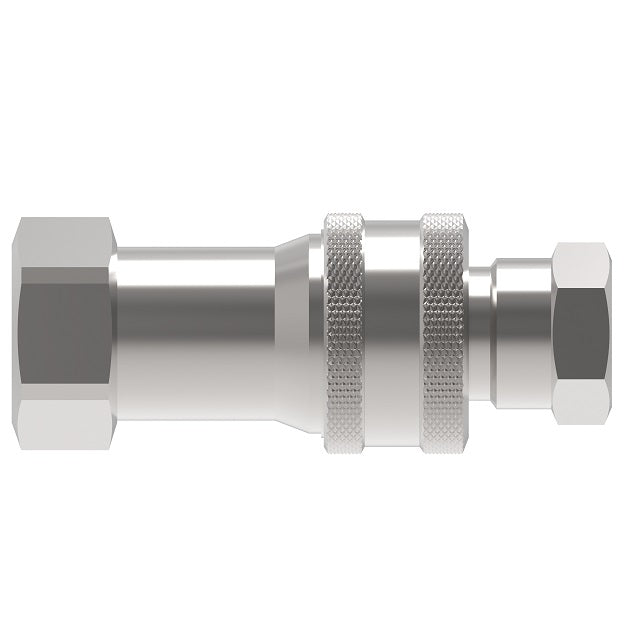

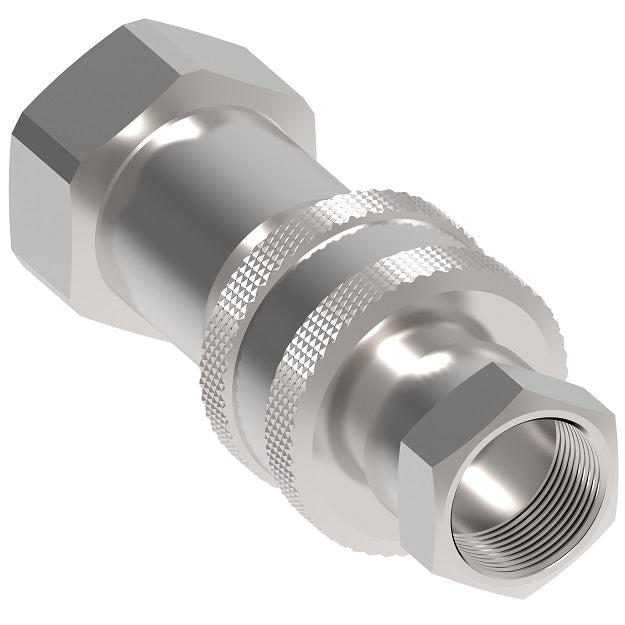

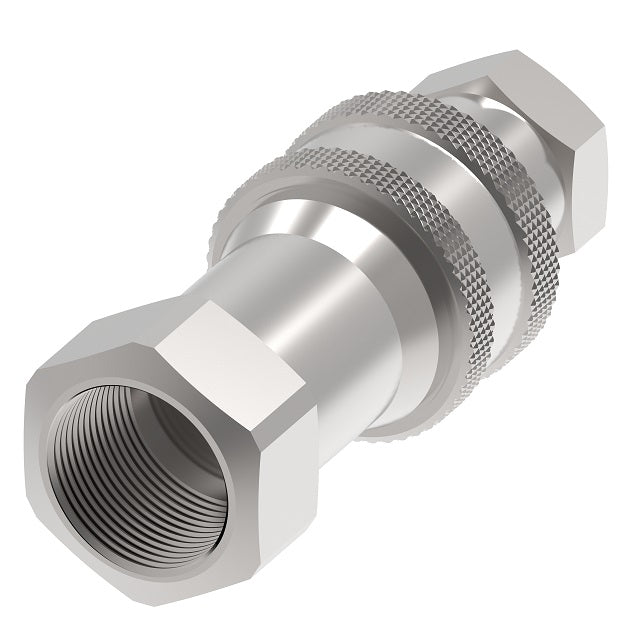

5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel

5650-12-10S Hansen® by Danfoss | Quick Disconnect Coupling | 5600 Series | 3/4" Female NPT x 5/8" ISO 7241 Type A | Complete Plug and Socket Set | Valved (Connect Under Pressure Style) | Buna-N Seal | Carbon Steel

$142.16 - $142.16

$142.16

$142.16 - $142.16

$142.16

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Quantity

Specifications for Variant SKU: 5650-12-10S Danfoss
Brand:	Hansen
Series:	5600 Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Female NPT, 5/8in ISO-A QD Interchange
Material(s):	Steel
Seal Material(s):	Buna-N/Nitrile Rubber

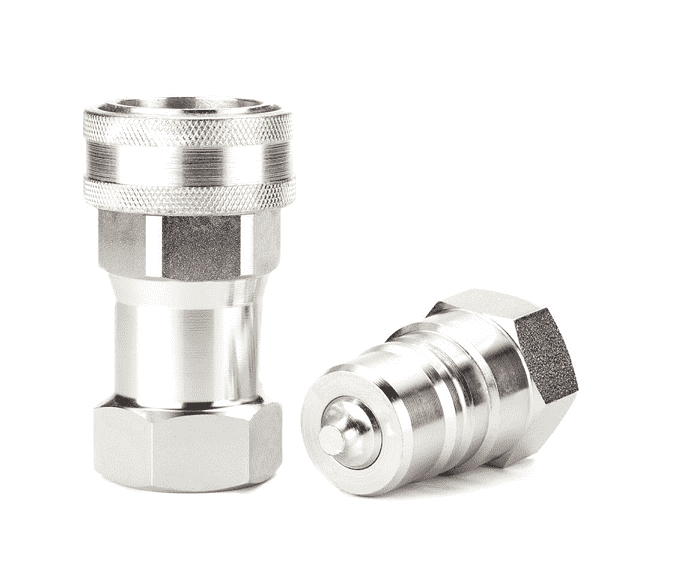

Hansen® by Danfoss
5600 Series | ISO 7241-1 A Interchange

Female NPT, Connect Under Pressure Style

Fluid Transfer and Hydraulic Quick Disconnect Coupling

Danfoss Hansen 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.

Product Features:	Self-sealing poppet valve provides excellent high and low pressure sealing. Streamlined valving provides minimum pressure drop.
Applications & Markets:	Hydraulic fluid transfer Agricultural equipment Construction equipment Dump, snow plow and maintenance vehicles In-plant manufacturing
ISO Standard:	Meets dimensional requirements to ISO standard 7241-1 Series A
Materials:	Standard body material: High resistance carbon steel with zinc trivalent plating (Brass poppet guide in -04 size) Standard seal materials: Buna-N, EPDM and FKM

Body Size	Max. Operating Pressure		Minimum Burst Pressure Connected		Vacuum Connected Only	Rated Flow		Air Inclusion	Fluid Loss
in	bar	psi	bar	psi	in/hg	lpm	gpm	cc.max.	cc.max.
1/4	350	5000	1050	15000	28	4	1	0.50	0.50
3/8	280	4000	840	12000	28	23	6	1.5	1.3
5/8	280	4000	840	12000	28	45	12	2.8	2.8
3/4	280	4000	840	12000	28	106	28	10.0	8.2
1	280	4000	840	12000	28	189	50	14.2	14.2


Plug/Male (Figure 1)			Socket/Female (Figure 2)					Complete Plug and Socket Set (Figure 3)
Part Number			Coupling Type	Body Size	Port Size	Thread	Type	Figure	Dimensions
Buna-N	FKM	EPDM							A		B		Hex 1
Buna-N	FKM	EPDM							mm	in	mm	in	mm	in
5602-8-10S	FD56-1062-08-10	5644-8-10S	Plug/Male	5/8"	1/2"	1/2-14	Female NPT Valved	1	51.3mm	2.02"	-	-	26.9mm	1.06"
5651-8-10S			Socket/Female	5/8"	1/2"	1/2-14	Female NPT	4	73.2mm	2.88"	38.1mm	1.50"	26.9mm	1.06"
5650-8-10S			Complete	5/8"	1/2"	1/2-14	Female NPT	5	98.8mm	3.89"	-	-	-	-
5602-12-10S	FD56-1062-12-10	5644-12-10S	Plug/Male	5/8"	3/4"	3/4-14	Female NPT Valved	1	54.9mm	2.16"			35.1mm	1.38"
5650-12-10S			Complete	5/8"	3/4"	3/4-14	Female NPT	5	113mm	4.45"	-	-	-	-
