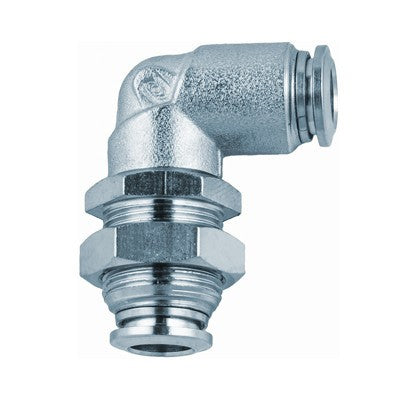

57060-6 AIGNEP | 57 Series | Bulkhead Orienting Elbow | 6mm Tube | Pack of 10

57060-6 by AIGNEP | 57 Series | Bulkhead Orienting | 6mm Tube | 90° Elbow | Pack of 10

Save $0.69

$68.74

$68.74 - $68.74

$68.74

$68.05

$68.05 - $68.05

$68.05

Package Quantity: 10 ea

Quantity

Specifications for Variant SKU: 57060-6 AIGNEP \| 10 \|
Series:	57 Series
Shape (Orientation):	90 Degree
Ends Configuration:	6mm Push-to-Connect, 6mm Push-to-Connect, Some Ends Match
Material(s):	Nickel-Plated Brass
Seal Material(s):	Buna-N/Nitrile Rubber

Swivel Elbow Bulkhead Metallic

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Thread Seal: NBR

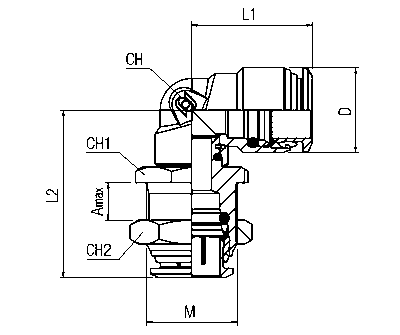

Product Number	Tube	M	L1	L2	CH	CH1	CH2	D
57060-6	6 mm	M14X1	21.5 mm	31 mm	11 mm	17 mm	17 mm	12.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
