57910-4-M5 AIGNEP | Functional (Flow Controls) Series | Flow Control | 4mm Tube x M5 Male
57910-4-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 4mm Tube x M5 Male
57910-4-M5 AIGNEP | Functional (Flow Controls) Series | Flow Control | 4mm Tube x M5 Male

57910-4-M5 by AIGNEP | Functional (Flow Controls) Series | Flow Control | 4mm Tube x M5 Male

Save $0.11 Save $0.11
$11.11
$11.11 - $11.11
$11.11
$11.00
$11.00 - $11.00
$11.00
Specifications for Variant SKU: 57910-4-M5 AIGNEP
Series: Functional (Flow Controls) Series
Shape (Orientation): 90 Degree
Material(s): Nickel-Plated Brass
Seal Material(s): Buna-N/Nitrile Rubber

Metric Tube Flow Control (IN)

Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: SWIFTFIT

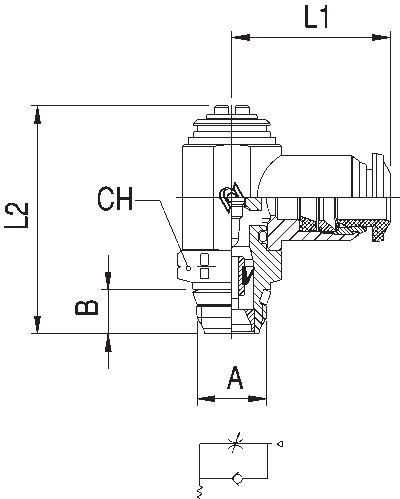

Product Number Tube A B D L1 L2 CH
57910-4-M5 4 mm M5 4 mm 10 mm 19 mm 29.5 mm 8 mm
57910-4-1/8 4 mm 1/8" 5.5 mm 10 mm 21 mm 31 mm 14 mm
57910-5-M5 5 mm M5 4 mm 12.5 mm 20 mm 29.5 mm 8 mm
57910-5-1/8 5 mm 1/8" 5.5 mm 12.5 mm 21.5 mm 31 mm 14 mm
57910-5-1/4 5 mm 1/4" 7 mm 12.5 mm 24.5 mm 36.5 mm 17 mm
57910-6-M5 6 mm M5 4 mm 12.5 mm 20.5 mm 29.5 mm 8 mm
57910-6-1/8 6 mm 1/8" 5.5 mm 12.5 mm 22.5 mm 31 mm 14 mm
57910-6-1/4 6 mm 1/4" 7 mm 12.5 mm 25 mm 36.5 mm 17 mm
57910-8-1/8 8 mm 1/8" 5.5 mm 14 mm 24 mm 31 mm 14 mm
57910-8-1/4 8 mm 1/4" 7 mm 14 mm 26 mm 36.5 mm 17 mm
57910-8-3/8 8 mm 3/8" 7.5 mm 14 mm 28.5 mm 42.5 mm 20 mm
57910-10-1/4 10 mm 1/4" 7 mm 17 mm 28.5 mm 36.5 mm 17 mm
57910-10-3/8 10 mm 3/8" 7.5 mm 17 mm 30.5 mm 42.5 mm 20 mm
57910-12-3/8 12 mm 3/8" 7.5 mm 21.5 mm 32.5 mm 42.5 mm 20 mm
57910-12-1/2 12 mm 1/2" 9 mm 21.5 mm 35 mm 47 mm 24 mm
57910-14-1/2 14 mm 1/2" 9 mm 21.5 mm 35.5 mm 47 mm 24 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
