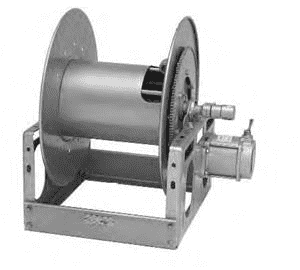

6000 Hannay Air Powered Rewind Reel (A-6038-23-24)

A-6038-23-24 by Hannay | 6000 Series | Air Powered Rewind Reel

Save $90.74 Save $90.74
$1,607.41
$1,607.41 - $1,607.41
$1,607.41
$1,516.67
$1,516.67 - $1,516.67
$1,516.67



6000 Air Powered Rewind Reels To handle single 1/2" through 1" I.D. hose.
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A-6038-23-24 Hannay
Series: 6000 Series
Applications:
  • Fuel Dispensing
  • Spray Operations
  • Fire Protection
Features:
  • Heavy-duty reel for longer lengths of hose.
  • Chain and sprocket drive powered by a compressed air motor.
  • Power rewind reels feature a comet brake.
  • Standard inlet a 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/2" 3/4" 1"
O.D. (in) 7/8" 1-9/32" 1-9/16" A B D E F Crank F Power G H X Y
A-6024-19-21 235' length 125' length 60' length 105 lbs. 21" 15.5" 20.5" 18.75" 25.38" 28.5" 21.5" 12.12" 13" 16.75"
A-6032-19-21 350' length 200' length 100' length 122 lbs. 29.5" 24" 20.5" 18.75" 33.88" 37" 21.5" 12.12" 21.5" 16.75"
A-6024-23-24 450' length 185' length 100' length 112 lbs. 21" 15.5" 20.5" 22.75" 25.38" 28.5" 23.5" 12.12" 13" 16.75"
A-6030-23-24 N/A 250' length 150' length 125 lbs. 27.5" 22" 20.5" 22.75" 31.88" 35" 23.5" 12.12" 19.5" 16.75"
A-6038-23-24 N/A 350' length 200' length 140 lbs. 35" 29.5" 20.5" 22.75" 39.38" 42.5" 23.5" 12.12" 27" 16.75"
A-6016-25-26 285' length 100' length 60' length 108 lbs. 13" 7.5" 25.5" 24.75" 17.38" 20.5" 27.88" 15.5" 7.75" 21.75"
A-6022-25-26 500' length 200' length 100' length 120 lbs. 19" 13.5" 25.5" 24.75" 23.38" 26.5" 27.88" 15.5" 11" 21.75"
A-6028-25-26 N/A 300' length 200' length 133 lbs. 25.5" 20" 25.5" 24.75" 29.88" 33" 27.88" 15.5" 17.5" 21.75"
A-6018-30-31 450' length 235' length 135' length 121 lbs. 15" 9.5" 25.5" 28.75" 19.38" 22.5" 29.88" 15.5" 7" 21.75"
A-6024-30-31 N/A 400' length 200' length 133 lbs. 21" 15.5" 25.5" 28.75" 25.38" 28.5" 29.88" 15.5" 13" 21.75"
A-6028-30-31 N/A 500' length 265' length 141 lbs. 25.5" 20" 25.5" 28.75" 29.88" 33" 29.88" 15.5" 17.5" 21.75"
A-6030-30-31† N/A 550' length 300' length 145 lbs. 27.5" 22" 25.5" 28.75" 31.88" 35" 29.88" 15.5" 19.5" 21.75"
A-6028-33-34† N/A 600' length 350' length 149 lbs. 25" 20" 31.5" 31.75" 29.62" 32.75" 33.62" 17.75" 17.5" 27.75"

† Some applications require a clutch/reduction unit.
