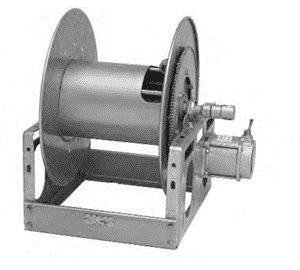

6000 Hannay Electric Powered Rewind Reel (EP-6024-23-24) 12 Volt DC

EP-6024-23-24 by Hannay | 6000 Series | Electric Powered Rewind Reel | 12 Volt DC

$1,498.52 - $1,498.52
$1,498.52
$1,516.39
$1,516.39 - $1,516.39
$1,516.39



6000 Electric Powered Rewind Reels To handle single 1/2" through 1" I.D. hose.
Specifications for Variant SKU: EP-6024-23-24 Hannay
Series: 6000 Series
Applications:
  • Fuel Dispensing
  • Spray Operations
  • Fire Protection
Features:
  • Heavy-duty reel for longer lengths of hose.
  • Chain and sprocket drive powered by an electric motor.(1/2 HP)
  • Power rewind reels feature a comet brake.
  • Standard inlet a 90 deg. ball bearing swivel joint 1" female NPT threads.
  • Standard outlet 1" female NPT threads.
  • Standard inlet, outlet riser and hub assembly are steel.
  • Pressures to 2000 psi (138 bar).
  • Temperatures from -60 deg. F to +250 deg. F (-51 deg. C to +121 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/2" 3/4" 1"
O.D. (in) 7/8" 1-9/32" 1-9/16" A B D E F Crank F Power G H X Y
EP-6024-19-21 235' length 125' length 60' length 125 lbs. 21" 15.5" 20.5" 18.75" 25.38" 28.5" 21.5" 12.12" 13" 16.75"
EP-6032-19-21 350' length 200' length 100' length 142 lbs. 29.5" 24" 20.5" 18.75" 33.88" 37" 21.5" 12.12" 21.5" 16.75"
EP-6024-23-24 450' length 185' length 100' length 132 lbs. 21" 15.5" 20.5" 22.75" 25.38" 28.5" 23.5" 12.12" 13" 16.75"
EP-6030-23-24 N/A 250' length 150' length 145 lbs. 27.5" 22" 20.5" 22.75" 31.88" 35" 23.5" 12.12" 19.5" 16.75"
EP-6038-23-24 N/A 350' length 200' length 160 lbs. 35" 29.5" 20.5" 22.75" 39.38" 42.5" 23.5" 12.12" 27" 16.75"
EP-6016-25-26 285' length 100' length 60' length 128 lbs. 13" 7.5" 25.5" 24.75" 17.38" 20.5" 27.88" 15.5" 7.75" 21.75"
EP-6022-25-26 500' length 200' length 100' length 140 lbs. 19" 13.5" 25.5" 24.75" 23.38" 26.5" 27.88" 15.5" 11" 21.75"
EP-6028-25-26 N/A 300' length 200' length 153 lbs. 25.5" 20" 25.5" 24.75" 29.88" 33" 27.88" 15.5" 17.5" 21.75"
EP-6018-30-31 450' length 235' length 135' length 141 lbs. 15" 9.5" 25.5" 28.75" 19.38" 22.5" 29.88" 15.5" 7" 21.75"
EP-6024-30-31 N/A 400' length 200' length 153 lbs. 21" 15.5" 25.5" 28.75" 25.38" 28.5" 29.88" 15.5" 13" 21.75"
EP-6028-30-31 N/A 500' length 265' length 161 lbs. 25.5" 20" 25.5" 28.75" 29.88" 33" 29.88" 15.5" 17.5" 21.75"
EP-6030-30-31† N/A 550' length 300' length 165 lbs. 27.5" 22" 25.5" 28.75" 31.88" 35" 29.88" 15.5" 19.5" 21.75"
EP-6028-33-34† N/A 600' length 350' length 169 lbs. 25" 20" 31.5" 31.75" 29.62" 32.75" 33.62" 17.75" 17.5" 27.75"

† Some applications require a clutch/reduction unit.
