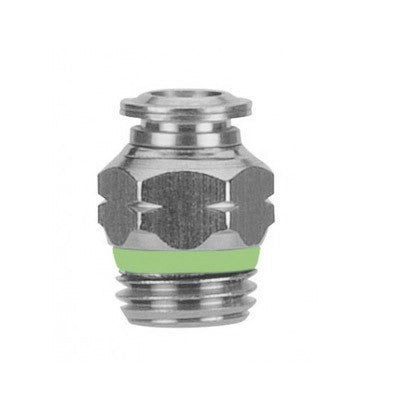

60000-04-04 AIGNEP | 60/62 Series | Stainless Steel Straight | 1/4" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | FKM Seal

60000-04-04 by AIGNEP | 60/62 Series | 1/4" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread | Straight | FKM Seal | Stainless Steel

Save $0.10

$10.41

$10.41 - $10.41

$10.41

$10.31

$10.31 - $10.31

$10.31

Quantity

Specifications for Variant SKU: 60000-04-04 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	1/4in Push-to-Connect, 1/4in Male Swift-Fit
Material(s):	Stainless steel
Seal Material(s):	FKM

Straight Male Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ? F - 392° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

Product Number	Tube	A	B (IN)	B	L	CH1	CH2
60000-53-32	5/32"	10-32	0.157"	4 mm	21 mm	10 mm	2 mm
60000-53-02	5/32"	1/8"	0.216"	5.5 mm	18 mm	11 mm	3 mm
60000-53-04	5/32"	1/4"	0.275"	7 mm	19.5 mm	14 mm	3 mm
60000-04-32	1/4"	10-32	0.157"	4 mm	23 mm	12 mm	2 mm
60000-04-02	1/4"	1/8"	0.334"	8.5 mm	23.5 mm	13 mm	4 mm
60000-04-04	1/4"	1/4"	0.275"	7 mm	20.5 mm	14 mm	4 mm
60000-05-02	5/16"	1/8"	0.216"	5.5 mm	24 mm	14 mm	5 mm
60000-05-04	5/16"	1/4"	0.275"	7 mm	21.5 mm	14 mm	6 mm
60000-06-04	3/8"	1/4"	0.275"	7 mm	32.5 mm	17 mm	7 mm
60000-06-06	3/8"	3/8"	0.295"	7.5 mm	29.5 mm	18 mm	7 mm
60000-06-08	3/8"	1/2"	0.345"	9 mm	25.5 mm	17 mm	8 mm
60000-08-06	1/2"	3/8"	0.295"	7.5 mm	31 mm	21 mm	9 mm
60000-08-08	1/2"	1/2"	0.354"	9 mm	31 mm	21 mm	10 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
