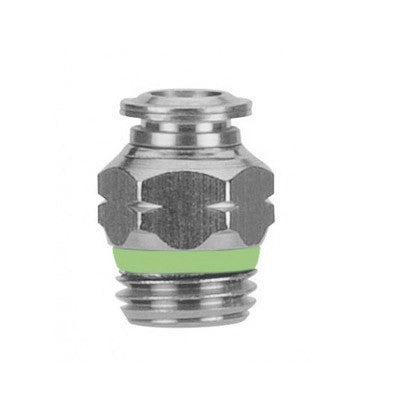

60000-53-04 AIGNEP | 60/62 Series | Stainless Steel Straight | 5/32" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread Universal Thread | FKM Seal
60000-53-04 by AIGNEP | 60/62 Series | 5/32" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread Universal Thread | Straight | FKM Seal | Stainless Steel
60000-53-04 AIGNEP | 60/62 Series | Stainless Steel Straight | 5/32" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread Universal Thread | FKM Seal

60000-53-04 by AIGNEP | 60/62 Series | 5/32" Tube Push Connect x 1/4" Male Swift-Fit Universal Thread Universal Thread | Straight | FKM Seal | Stainless Steel

Save $0.09 Save $0.09
$9.30
$9.30 - $9.30
$9.30
$9.21
$9.21 - $9.21
$9.21
Specifications for Variant SKU: 60000-53-04 AIGNEP
Series: 60/62 Series
Shape (Orientation): Straight
Ends Configuration: 5/32in Push-to-Connect, 1/4in Male Swift-Fit
Material(s): Stainless Steel
Seal Material(s): Viton/FKM

Straight Male Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ? F - 392° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless steel
Thread Seal: FKM
Thread Type: SWIFTFIT

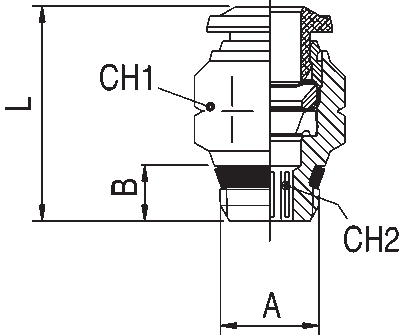

Product Number Tube A B (IN) B L CH1 CH2
60000-53-32 5/32" 10-32 0.157" 4 mm 21 mm 10 mm 2 mm
60000-53-02 5/32" 1/8" 0.216" 5.5 mm 18 mm 11 mm 3 mm
60000-53-04 5/32" 1/4" 0.275" 7 mm 19.5 mm 14 mm 3 mm
60000-04-32 1/4" 10-32 0.157" 4 mm 23 mm 12 mm 2 mm
60000-04-02 1/4" 1/8" 0.334" 8.5 mm 23.5 mm 13 mm 4 mm
60000-04-04 1/4" 1/4" 0.275" 7 mm 20.5 mm 14 mm 4 mm
60000-05-02 5/16" 1/8" 0.216" 5.5 mm 24 mm 14 mm 5 mm
60000-05-04 5/16" 1/4" 0.275" 7 mm 21.5 mm 14 mm 6 mm
60000-06-04 3/8" 1/4" 0.275" 7 mm 32.5 mm 17 mm 7 mm
60000-06-06 3/8" 3/8" 0.295" 7.5 mm 29.5 mm 18 mm 7 mm
60000-06-08 3/8" 1/2" 0.345" 9 mm 25.5 mm 17 mm 8 mm
60000-08-06 1/2" 3/8" 0.295" 7.5 mm 31 mm 21 mm 9 mm
60000-08-08 1/2" 1/2" 0.354" 9 mm 31 mm 21 mm 10 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
