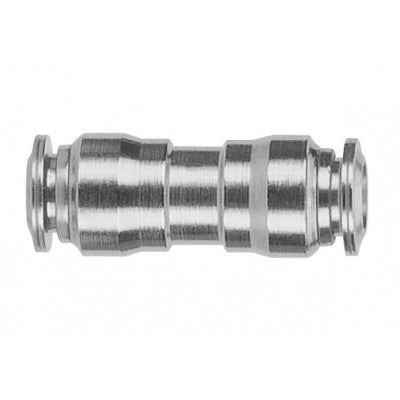

60040-10-8 AIGNEP | 60 Series | Stainless Steel Union Reducer | 10mm Tube x 8mm Tube
60040-10-8 by AIGNEP | 60 Series | Union Reducer | 10mm Tube x 8mm Tube | Stainless Steel
60040-10-8 AIGNEP | 60 Series | Stainless Steel Union Reducer | 10mm Tube x 8mm Tube

60040-10-8 by AIGNEP | 60 Series | Union Reducer | 10mm Tube x 8mm Tube | Stainless Steel

Save $0.19 Save $0.19
$19.02
$19.02 - $19.02
$19.02
$18.83
$18.83 - $18.83
$18.83
Specifications for Variant SKU: 60040-10-8 AIGNEP
Series: 60 Series
Shape (Orientation): Straight
Ends Configuration: 10mm Push-to-Connect, 8mm Push-to-Connect
Material(s): Stainless steel
Seal Material(s): FKM

Unequal Union Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel

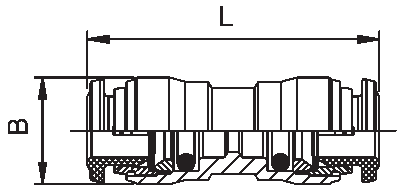

Product Number Tube B (IN) B L
60040-6-4 6 mm x 4 mm 0.492" 12.5 mm 31 mm
60040-8-6 8 mm x 6 mm 0.570" 14.5 mm 34.5 mm
60040-10-8 10 mm x 8 mm 0.669" 17.5 mm 38 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
