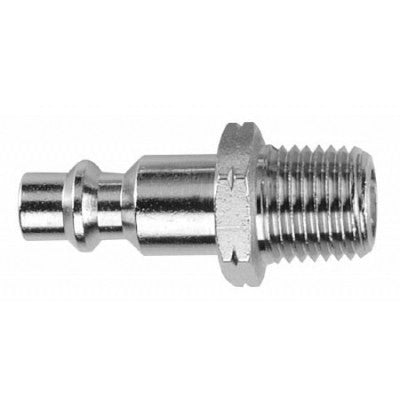

60221-04 AIGNEP | QC Series | Straight Hose Fitting w/ Barb | 1/4" Male NPTF
60221-04 by AIGNEP | QC Series | Hose Fitting w/ Barb | 1/4" Male NPTF | Straight
60221-04 AIGNEP | QC Series | Straight Hose Fitting w/ Barb | 1/4" Male NPTF

60221-04 by AIGNEP | QC Series | Hose Fitting w/ Barb | 1/4" Male NPTF | Straight

Save $0.09 Save $0.09
$8.68
$8.68 - $8.68
$8.68
$8.59
$8.59 - $8.59
$8.59
Specifications for Variant SKU: 60221-04 AIGNEP
Series: QC Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 1/4in Hose Barb
Material(s): Stainless Steel

1/4" Industrial Male 316L (STAINLESS)

Temperature Range: 5 ?- 392 ? F
Media: Compressed Air
Body: Stainless Steel
Thread Type: NPTF

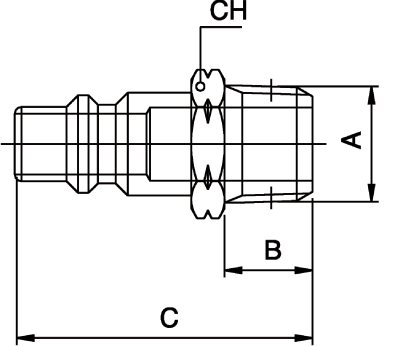

Product Number Seal Thread Type A B (IN) B CH C
60221-04 FKM NPTF 1/4" 0.512" 13 mm 17 mm 41.5 mm
AIGNEP

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
