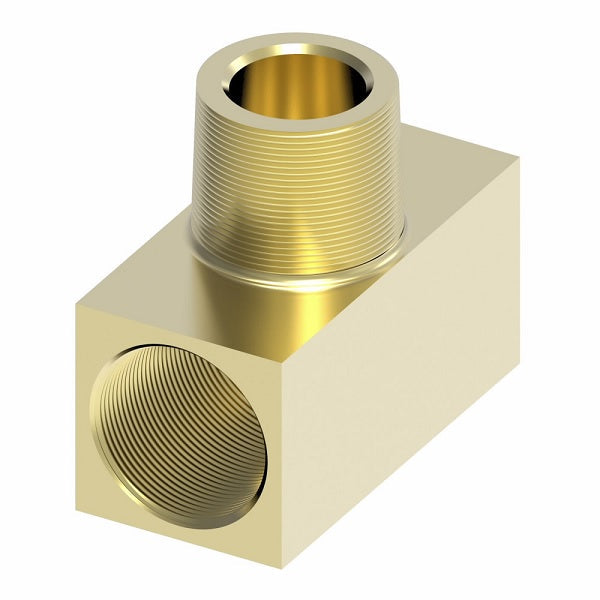

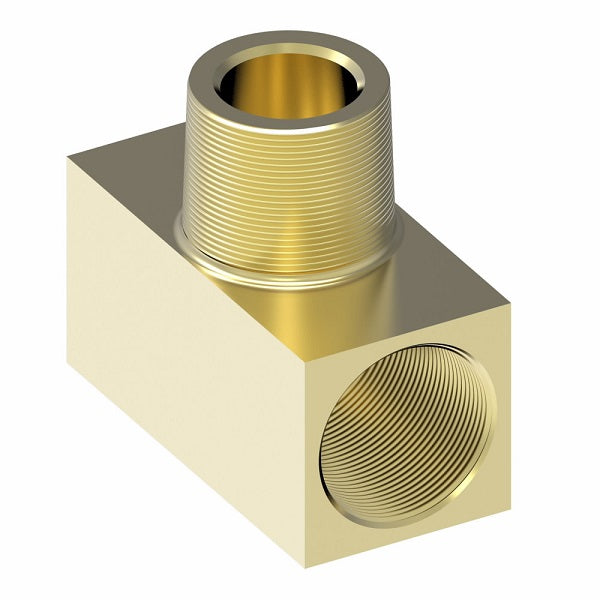

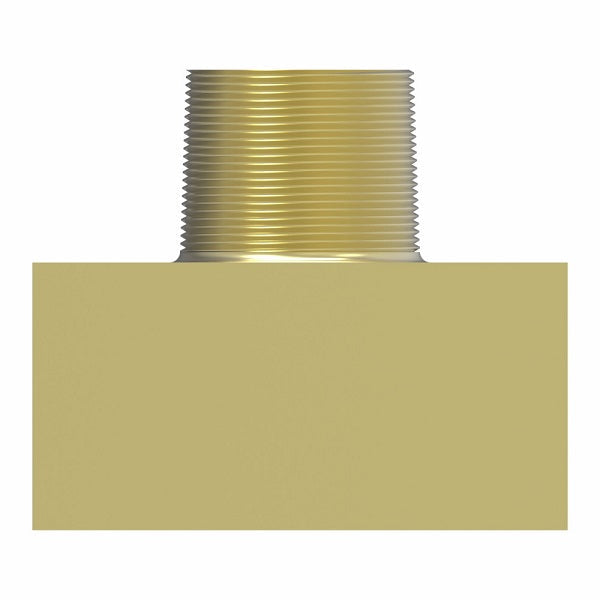

602X6 by Danfoss | Male Pipe/SAE Inverted Flare Branch Tee Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass
602X6 by Danfoss | Male Pipe/SAE Inverted Flare Branch Tee Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass
602X6 by Danfoss | Male Pipe/SAE Inverted Flare Branch Tee Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass
602X6 by Danfoss | Male Pipe/SAE Inverted Flare Branch Tee Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass

602X6 by Danfoss | Male Pipe/SAE Inverted Flare Branch Tee Adapter | 1/4" Male NPTF x 3/8" Female SAE Inverted Flare x 3/8" Female SAE Inverted Flare | Brass

$28.48 - $28.48
$28.48
$28.48 - $28.48
$28.48

Aeroquip® by Danfoss
Male Pipe/SAE Inverted Flare Branch Tee Adapter
Male NPTF x Female SAE Inverted Flare x Female SAE Inverted Flare
Specifications for Variant SKU: 602X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Male NPTF, 3/8in Female Inverted Flare, 3/8in Female Inverted Flare, Some Ends Match
Material(s): Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • Hydraulic brake, power steering, fuel lines and transmission cooler lines.
Advantages:
  • Very low cost and reusable.
  • Seats and threads are internal and protected.
  • Compact, excellent vibration life.
  • Short nut affords very close tube bends.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 040425
  • Listed by Underwriter's Laboratories (available on special order) for fuel equipment, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 7/8" 1"
Thread Size 5/16-28 3/8-24 7/16-24 1/2-20 5/8-18 11/16-18 3/4-18 7/8-18 1-1/16-16 1-3/16-16 1-5/16-16
Brass
Part Number 		Brass
Part Number with Sealant		 Tube O.D. Male Pipe Thread D D1 L L1 X
602X3 - 3/16" 1/8" 0.125" 0.219" 0.83" 0.86" 0.50"
602X4 - 1/4" 1/8" 0.189" 0.219" 0.84" 0.96" 0.57"
602X5 - 5/16" 1/8" 0.219" 0.219" 0.96" 0.96" 0.58"
602X6 - 3/8" 1/4" 0.281" 0.344" 1.16" 1.33" 0.78"
