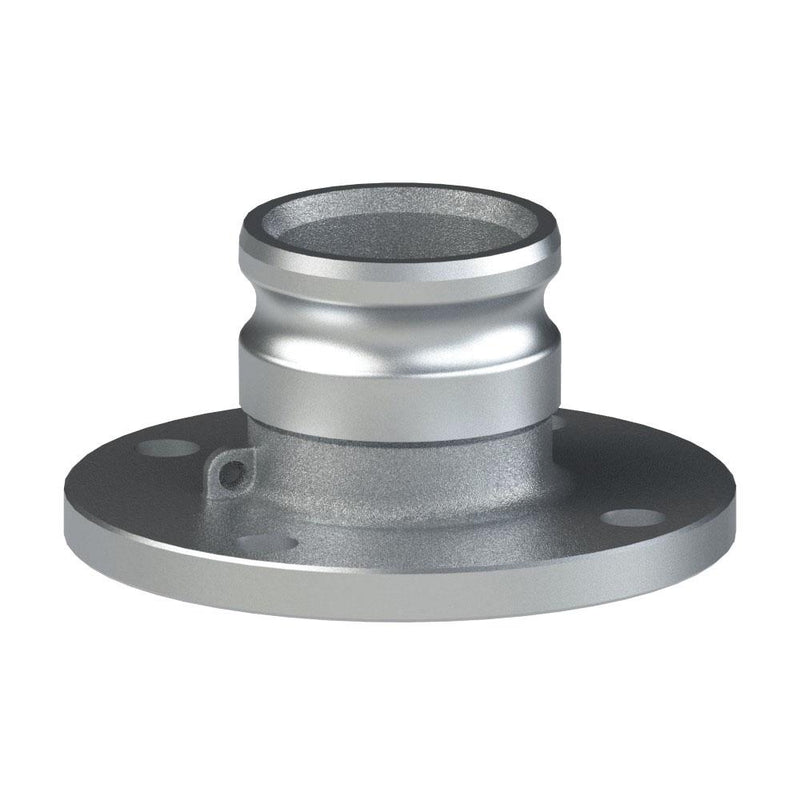

6052600H (PF60AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type PFA | 6" Adapter x 6" 150# Pipe Flange | Aluminum

Name: 6052600H (PF60AHD) by PT-Coupling | Heavy Duty Cam & Groove Adapter | Type PFA | 6" Adapter x 6" 150# Pipe Flange | Aluminum
Brand: PT-Coupling
SKU: 6052600H PT-Coupling
Price: 256.2 USD
Availability: InStock

Save $170.80

$427.00

$427.00 - $427.00

$427.00

$256.20

$256.20 - $256.20

$256.20

PT Coupling
Heavy Duty Cam & Groove (Camlock) Adapter | Type PFA | Adapter x 150# Pipe Flange | Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Quantity

Specifications for Variant SKU: 6052600H PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	6in Male Cam & Groove, 6in 150# Flange
Material(s):	Aluminum

Features & Applications:
Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150. Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges. Made in the USA

Part Name	Item #	Heavy Duty Adapter Size	Flange Size	Max. Allowable Working Press. (PSI)*
PF60AHD	6052600H	6"	6"	75 PSI

** Denotes that these parts are made as a welded fabrication.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
