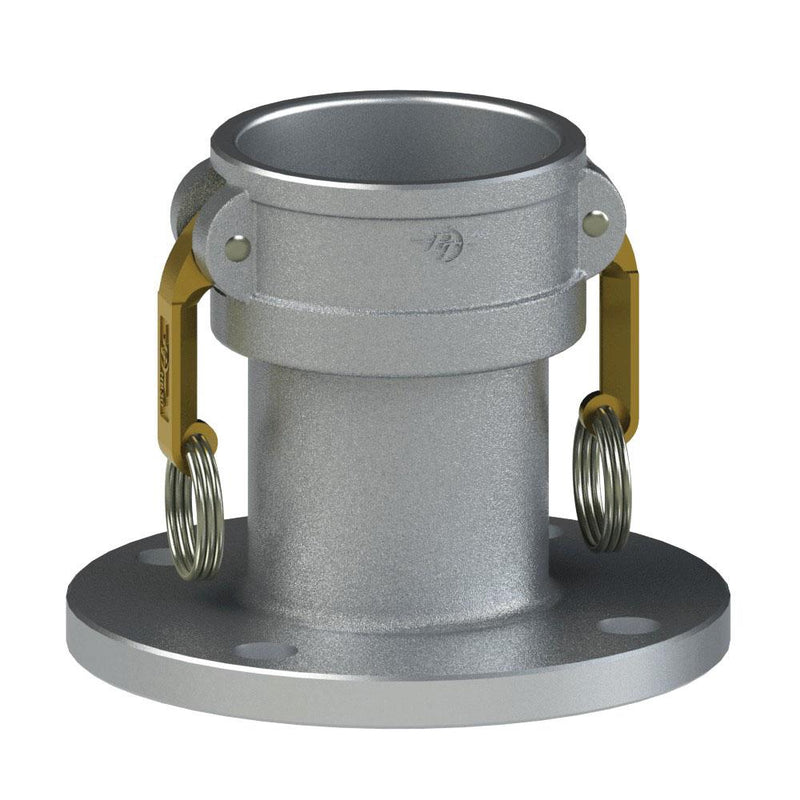

6054000072 (PF40C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 4" Coupler x 4" 150# Pipe Flange | Aluminum/HB

Name: 6054000072 (PF40C) by PT-Coupling | Cam & Groove Adapter | Type PFC | 4" Coupler x 4" 150# Pipe Flange | Aluminum/HB
Brand: PT-Coupling
SKU: 6054000072 PT-Coupling
Price: 207.75 USD
Availability: InStock

Save $122.63

$330.38

$330.38 - $330.38

$330.38

$207.75

$207.75 - $207.75

$207.75

PT Coupling
Cam & Groove (Camlock) Adapter | Type PFC | Coupler x 150# Pipe Flange | Aluminum/HB

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA

Specifications for Variant SKU: 6054000072 PT-Coupling
Shape (Orientation):	Straight
Cam Type:	Other
Ends Configuration:	4in Female Cam & Groove, 4in 150# Flange
Material(s):	Aluminum

Features & Applications:
HB Cam Arms are made from Brass. Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance. Use with water, hydraulic oil, coolants, gasoline, and petroleum products. Pipe Flange bolt pattern conforms to ANSI B16.5 Class 150. Stainless Steel and Carbon Steel Flanges are raised face. Other materials are supplied with flat face flanges. Made in the USA


Part Name	Item #	Coupler Size	Flange Size	O. D. with Cam Arms Extended (A)	Overall Length (C)	Inside Diameter (E)	Outside Diameter (F)	Bolt Hole Diameter (J)	Number of Holes (K)	Bolt Circle Diameter (L)	Max. Allowable Working Press. (PSI)*
PF20C	6054000070	2"	2"	7.54"	5.82"	1.63"	6.00"	0.75"	4	4.75"	250 PSI
PF30C	6054000071	3"	3"	9.56"	5.82"	2.90"	7.50"	0.75"	4	6.00"	200 PSI
PF40C	6054000072	4"	4"	10.66"	5.39"	3.60"	9.00"	0.75"	8	7.50"	150 PSI
PF40X60C	6054060	4"	6"	10.66"	5.39"	3.60"	9.00"	0.75"	8	7.50"	75 PSI
PF60C	60546000	6"	6"	16.76"	7.75"	5.60"	11.00"	0.88"	8	9.50"	75 PSI
PF80C	6054000073	8"	8"	18.73"	7.64"	7.53"	13.50"	0.88"	8	11.75"	50 PSI
PF100C	60549000	10"	10"	23.00"	8.50"	9.40"	16.00"	1.00"	12	14.25"	50 PSI
PF120C	60549200	12"	12"	25.00"	8.50"	11.40"	19.00"	1.00"	12	12.00"	50 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
