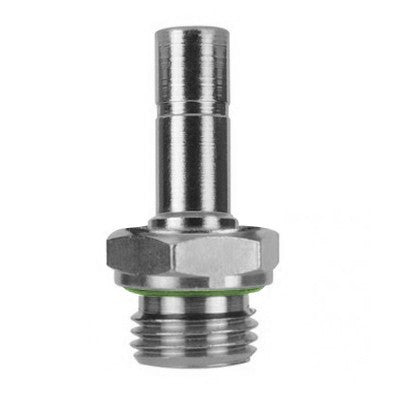

60600-10-3/8" AIGNEP | 60/62 Series | Stainless Steel Standpipe Adapter | 10mm Stud x 3/8" BSPP Male W/O|Ring

60600-10-3/8 by AIGNEP | 60/62 Series | Standpipe Adapter | 10mm Stud x 3/8" BSPP Male W/O-Ring | Stainless Steel

Name: 60600-10-3/8 by AIGNEP | 60/62 Series | Standpipe Adapter | 10mm Stud x 3/8" BSPP Male W/O-Ring | Stainless Steel
Brand: AIGNEP
SKU: 60600-10-3/8 AIGNEP
Price: 12.29 USD
Availability: InStock

Save $8.19

$20.48

$20.48 - $20.48

$20.48

$12.29

$12.29 - $12.29

$12.29

Quantity

Specifications for Variant SKU: 60600-10-3/8 AIGNEP
Series:	60/62 Series
Shape (Orientation):	Straight
Ends Configuration:	10mm Push-to-Connect, 3/8in Male BSPP
Material(s):	Stainless Steel
Seal Material(s):	Viton/FKM

Standpipe Stainless

Pressure Rating: Vacuum-290 PSI
Temperature Range: 5 ° F - 437° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air Fluid for food and Chemical Industry compatible with component specifications
Body: Stainless Steel
Thread Seal: FKM

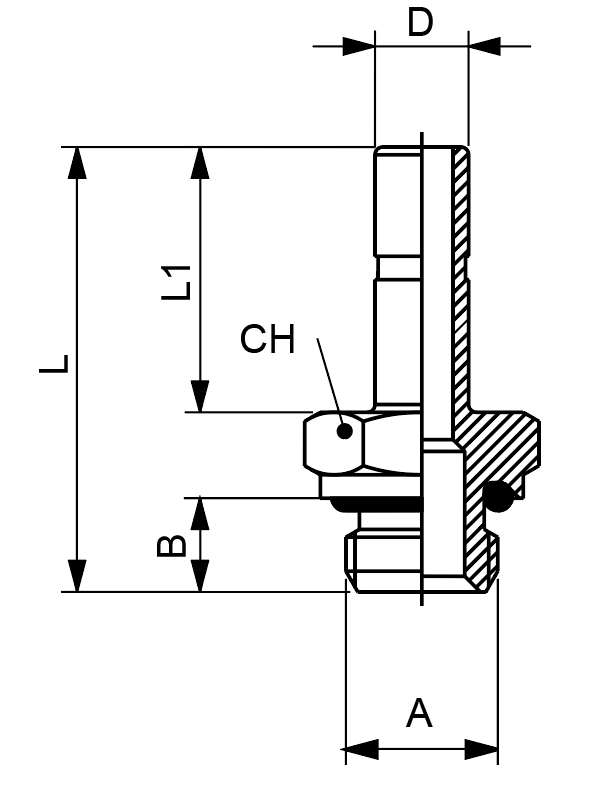

Product Number	D	A	B	L	L1	CH
60600-6-1/8	6 mm	1/8"	6 mm	28.5 mm	17 mm	13 mm
60600-8-1/4	8 mm	1/4"	8 mm	31.5 mm	18 mm	14 mm
60600-10-1/4	10 mm	1/4"	8 mm	35.5 mm	22 mm	14 mm
60600-10-3/8	10 mm	3/8"	9 mm	37.5 mm	22 mm	20 mm
60600-12-3/8	12 mm	3/8"	9 mm	40 mm	24.5 mm	20 mm
60600-12-1/2	12 mm	1/2"	10 mm	42.5 mm	24.5 mm	24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
