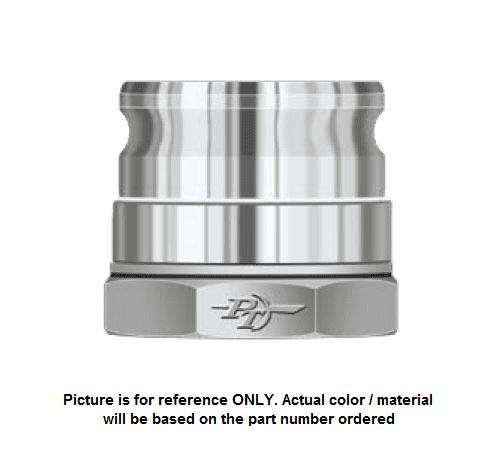

60156000 (60ASV) by PT-Coupling | 6" Swivel Adapter x 6" Female NPT | Aluminum | Viton Seal

60156000 (60ASV) by PT-Coupling | 6" Swivel Adapter x 6" Female NPT | Aluminum | Viton Seal

Save $37.68 Save $37.68
$339.15
$339.15 - $339.15
$339.15
$301.47
$301.47 - $301.47
$301.47
Specifications for Variant SKU: 60156000 PT-Coupling
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 6in Male Cam & Groove, 6in Female NPT
Material(s): Aluminum
Seal Material(s): Viton
Special Properties: Swivel

PRODUCT DESCRIPTION

PT Coupling - Special Cam & Groove Couplings - Standard Swivel Cam & Groove - Part ASV - 360° Swivel - Adapter x Female NPT Thread - Aluminum
Features & Applications:
  • Ball bearing swivel action.
  • Available with U-cup Viton® or Buna Seals
  • Lightweight and economical. Good abrasion resistance. Fair corrosion and chemical resistance.
  • Use with water, hydraulic oil, coolants, gasoline, and petroleum products.
  • Made in the USA.
This Fitting is also Available in the Following Materials:
Accessories:

Part
Name		 Aluminum
Viton®
Item #		 Aluminum
Buna
Item #		 Adapter
Size		 Female NPT
Thread Size		 Overall
Length
(C)		 Inside
Diameter
(E)		 Across
Corners
(F)		 Chain Lug
Extension
(G)		 Max. Allowable
Working Press.
(PSI)*
15ASV 60151500 - 1-1/2" 1-1/2" 2.29" 1.35" 2.44" 0.33" 250 PSI
20ASV 60152000 - 2" 2" 2.54" 1.72" 2.92" 0.31" 250 PSI
25ASV - 60152500 2-1/2" 2-1/2" 2.75" 2.14" 3.49" 0.27" 200 PSI
30ASV 60153000 60153100 3" 3" 2.84" 2.80" 4.22" 0.44" 200 PSI
40ASV 60154000 60154100 4" 4" 3.16" 3.78" 5.41" 0.39" 150 PSI
50ASV 60155000 - 5" 5" 3.22" 4.79" 6.49" 0.35" 75 PSI
60ASV 60156000 60156000B 6" 6" 3.35" 5.90" 7.70" 0.60" 75 PSI
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.
PT-Coupling

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
