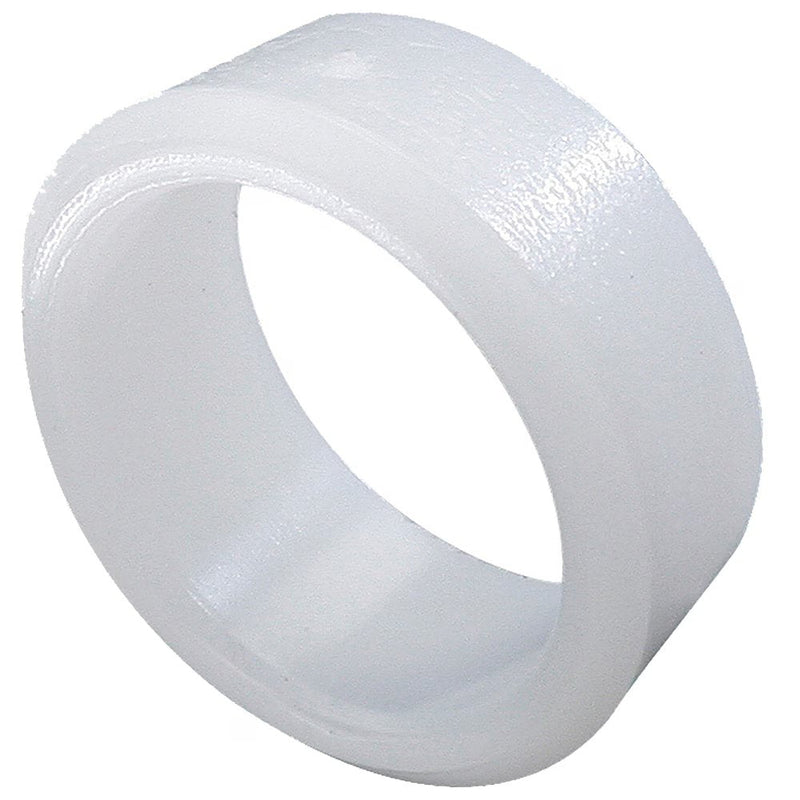

60PT-8 by Parker | Compression Fitting | 1/2" Sleeve | Straight | Acetal | Pack of 100

Save $5.72

$59.05

$59.05 - $59.05

$59.05

$53.33

$53.33 - $53.33

$53.33

by Parker Hannifin
Compression Fittings:Acetal Sleeve 60PT

Package Quantity: 100 Units

Quantity

Specifications for Variant SKU: 60PT-8 Parker \| 100 \|
Series:	60PT Series
Shape (Orientation):	Straight
Material(s):	Acetal
Special Properties:	UL Listed

Specification:
Product Features:	Meets functional requirements of SAE J-512 UL Listed for flammable liquid Brass or acetal sleeve available No tube preparation Forged and extruded shapes
Markets:	Industrial Packaging Pneumatic Printing
Applications:	Air lines Lubrication Lines Cooling lines Industry Machinery Compressors Fluid transfer
Pressure Range:	See Chart Below

Temperature Range:	-65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:	Copper Aluminum Thermoplastic tubing


Part Number	Plastic Tube Wall	Tube Wall	A	D	L
60PT-4	1/4"	.040"	.375"	.254"	.19"
60PT-5	5/16"	.062"	.438"	.317"	.19"
60PT-6	3/8"	.062"	.500"	.379"	.19"
60PT-8	1/2"	.062"	.631"	.507"	.25"
60PT-10	5/8"	.062"	.747"	.632"	.22"
