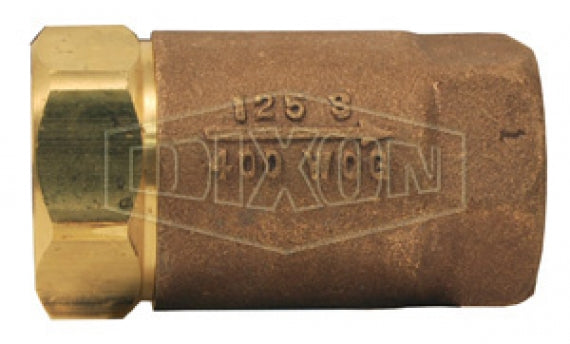

61-105 by Dixon Valve | Domestic Ball Cone Check Valve | 1" Female NPT x 1" Female NPT | Brass

61-105 by Dixon Valve | Domestic Ball Cone Check Valve | 1" Female NPT x 1" Female NPT | Brass

Save $21.34 Save $21.34
$120.02
$120.02 - $120.02
$120.02
$98.68
$98.68 - $98.68
$98.68

Dixon Valve & Coupling
Domestic Ball Cone Check Valve

For use with water, oil, or inert gases.
Specifications for Variant SKU: 61-105 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Female NPT, 1in Female NPT, Some Ends Match
Material(s): Brass
Features:
  • Tight shutoff with liquid media.
  • No radial alignment necessary.
  • Straight through and streamlined for minimum change in velocity.
  • Reinforced PTFE check is spring loaded for fast seating action.
Specifications:
  • Pressure rating: 400 PSI WOG, cold non-shock; 125 PSI saturated steam.
  • Cracking pressure: .5 PSI
  • Temperature range: -20°F to 353°F (-29°C to 178°C)
Note:
  • Not recommended for use on or near reciprocating pumps or other similar vibration causing machinery.
Pressure Ratings
Temperature Pressure WOG (PSI)
-20°F to 100°F (-29°C to 38°C) 400 PSI
200°F (93°C) 200 PSI
250°F (121°C) 160 PSI
275°F (135°C) 150 PSI
300°F (149°C) 140 PSI
325°F (163°C) 130 PSI
353°F (178°C) 125 PSI
Brass
Part Number		 316 Stainless Steel
Part Number		 Female NPT x Female NPT
61-101 62-101 1/4" x 1/4"
61-102 62-102 3/8" x 3/8"
61-103 62-103 1/2" x 1/2"
61-104 62-104 3/4" x 3/4"
61-105 62-105 1" x 1"
61-106 62-106 1-1/4" x 1-1/4"
61-107 62-107 1-1/2" x 1-1/2"
61-108 62-108 2" x 2"
61-109 - 2-1/2" x 2-1/2"
61-100 - 3" x 3"
