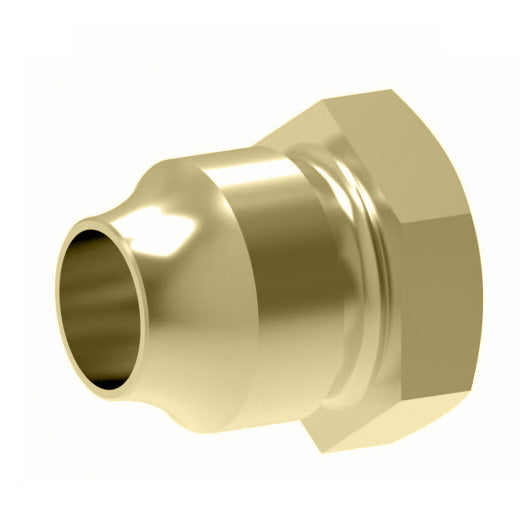

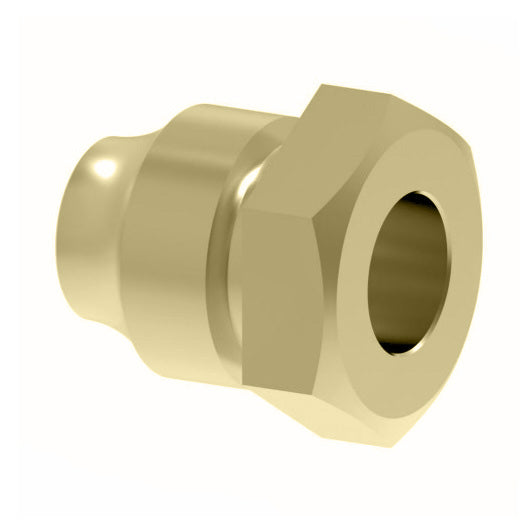

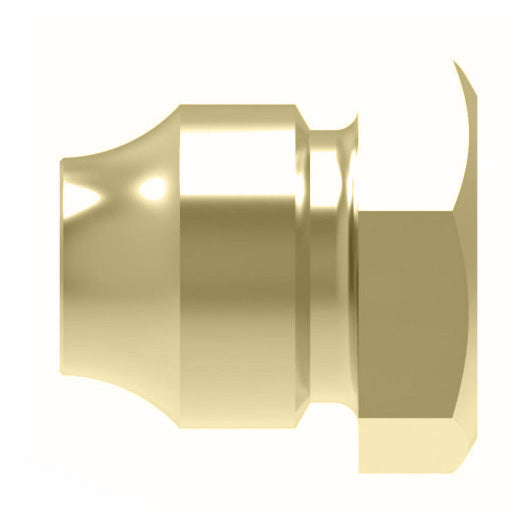

6100X6 by Danfoss | Threaded Sleeve Adapter | Nut | 3/8" Tube OD | Brass
6100X6 by Danfoss | Threaded Sleeve Adapter | Nut | 3/8" Tube OD | Brass
6100X6 by Danfoss | Threaded Sleeve Adapter | Nut | 3/8" Tube OD | Brass
6100X6 by Danfoss | Threaded Sleeve Adapter | Nut | 3/8" Tube OD | Brass

6100X6 by Danfoss | Threaded Sleeve Adapter | Nut | 3/8" Tube OD | Brass

$20.33 - $20.33
$20.33
$20.33 - $20.33
$20.33

Aeroquip® by Danfoss
Threaded Sleeve Adapter - Nut
Specifications for Variant SKU: 6100X6 Danfoss
Material(s): Brass
Applications:
  • Oil, air, water and lubrication systems.
Advantages:
  • Easy to assemble (no flaring).
  • Two (2) piece construction.
  • Fair Vibration Resistance.
Used With:
  • Aluminum and copper tubing.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass.
Operating Pressure:
  • 500 psi for 1/8" to 1/4" sizes.
  • 250 psi for 5/16" and 3/8" sizes.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Meets ASA and ASME specifications.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-20 9/16-20
Brass
Part Number 		Tube OD Hex
C		 D L
6100X2 1/8" 3/8" 0.130" 0.50"
6100X3 3/16" 7/16" 0.193" 0.53"
6100X4 1/4" 1/2" 0.255" 0.56"
6100X6 3/8" 5/8" 0.380" 0.61"
Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
