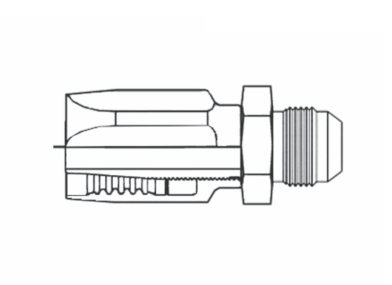

618R-2 Couplamatic Reusable Coupling - R1 & R2 Reusables - JIC 37° - Male Solid - 3/8" Hose ID - 9/16x18 Thread Size (for 100R2 Thin Hose)

618R-2 by Couplamatic | R1 & R2 Reusable Coupling | 3/8" Hose ID x 9/16x18 Thread Size | for 100R2 Thin Hose JIC 37° Male Solid | Straight | Trivalent Zinc Plating

$28.99 - $28.99
$28.99
$29.01
$29.01 - $29.01
$29.01

Couplamatic Systems Inc.
Reusable Couplings - 100R1AT & 100R2AT - R1 & R2 Reusables - JIC 37° - Male Solid
Specifications for Variant SKU: 618R-2 Couplamatic
Series: Reusable Fitting Series
Shape (Orientation): Straight
Ends Configuration: 3/8in Male JIC, 3/8in Reusable Hose End
Material(s): Steel
Compatible with the following Series: 57MB-2 Series
Description:
  • Non-Mandrel and No Skive.
  • Trivalent Zinc Plating.
    		•
    • 1. Screw socket onto hose (left hand thread) until hose bottoms. Back out 1/4 turn.
    • 2. Lubricate insert threads and I.D. of hose. Screw insert into socket until insert hex touches socket.
    Part Number Hose ID Pipe Size Thread Size Hose Type
    618R-1 3/8" 9/16x18 3/8" 100R1 Thin
    618R-2 3/8" 9/16x18 3/8" 100R2 Thin
    815R-2 1/2" 3/4x16 1/2" 100R2 Thin
    818R-2 1/2" 7/8x14 5/8" 100R2 Thin
