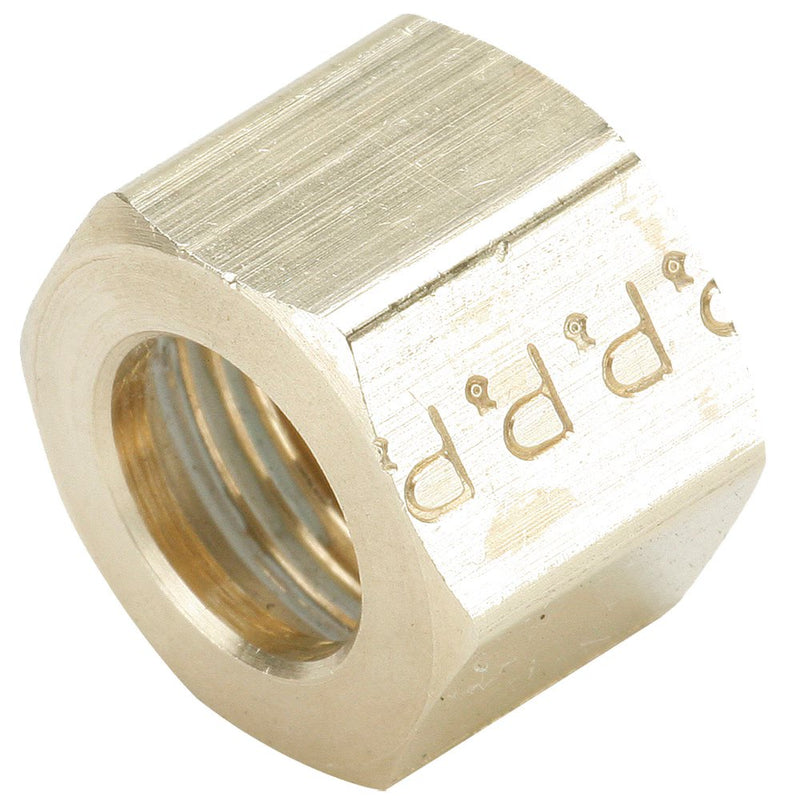

61C-14 by Parker | Compression Fitting | 7/8" Nut x 1-1/8" Thread | 1-1/4" Hex | Straight | Brass | Pack of 25

61C-14 by Parker | Compression Fitting | 7/8" Nut x 1-1/8" Thread | 1-1/4" Hex | Straight | Brass | Pack of 25

Save $19.39 Save $19.39
$213.28
$213.28 - $213.28
$213.28
$193.89
$193.89 - $193.89
$193.89

by Parker Hannifin
Compression Fittings:Nut 61C

Package Quantity: 25 Units

Specifications for Variant SKU: 61C-14 Parker | 25 |
Series: 61C Series
Shape (Orientation): Straight
Material(s): Brass
Special Properties: UL Listed
Product Features:
  • Meets functional requirements of SAE J-512
  • UL Listed for flammable liquid
  • Brass or acetal sleeve available
  • No tube preparation
  • Forged and extruded shapes
Markets:
  • Industrial
  • Packaging
  • Pneumatic
  • Printing
Applications:
  • Air lines
  • Lubrication Lines
  • Cooling lines
  • Industry
  • Machinery
  • Compressors
  • Fluid transfer
Specification:
Pressure Range: See Chart Below
Temperature Range: -65° to +250° F (- 53.8° to +121.1° C)
Compatible Tubing:
  • Copper
  • Aluminum
  • Thermoplastic tubing
Part Number Tube Size Straight Thread Hex (C) D L
61C-2 1/8" 5/16" 3/8" .130" .38"
61C-3 3/16" 3/8" 7/16" .192" .41"
61C-4 1/4" 7/16" 1/2" .255" .44"
61C-5 5/16" 1/2" 9/16" .318" .44"
61C-6 3/8" 9/16" 5/8" .382" .47"
61C-7 7/16" 5/8" 11/16" .444" .50"
61C-8 1/2" 11/16" 13/16" .507" .62"
61C-10 5/8" 13/16" 15/16" .632" .62"
61C-12 3/4" 1" 1-3/16" .758" .69"
61C-14 7/8" 1-1/8" 1-1/4" .890" .62"
