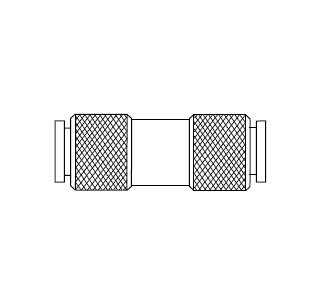

6201587 NEWLOC® by NewAge | Brass Push-to-Connect Fitting | Union Straight Connector | 0.25" Tube OD | Bag of 5

Save $1.33

$27.33

$27.33 - $27.33

$27.33

$26.00

$26.00 - $26.00

$26.00

PRODUCT DESCRIPTION

NewAge Industries - NEWLOC® Brass Push-to-Connect Fittings - Straight Connectors - Union Connectors

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: 6201587 NewAge \| 5 \|
Brand:	NEWLOC
Shape (Orientation):	Straight
Ends Configuration:	1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s):	Brass

Features:
Extremely easy to install - no tools necessary Made of durable brass - elbows and tees are forged Much higher temperature/pressure ratings than that of plastic Newloc No flow restrictions All male pipe threads come with a pre-applied fluoropolymer sealant Easy to disconnect and reuse Made in the USA
Notes:
Construction materials: Body & Collet: Brass 'O'- Ring: Buna-N Working pressure: Limited only by the working pressure of the plastic tubing used up to 250 psi Vacuum rating: Full (29.9 in./Hg) Working temperature: -10°F to 200°F** (higher temperatures are possible with special 'O'-rings - contact support) Use NEWLOC BRASS fittings with all types of semi-rigid to rigid plastic tubing including nylon and polyethylene. They may also be used with limited soft tubing sizes using tube supports (available). Pulling on the inserted tubing or increasing the pressure actually tightens the seal. Typical applications include systems for pneumatic control, robotics, instrumentation, and chemicals. Manifolds pre-mounted with NEWLOC BRASS fittings or nickel-plated NEWLOC BRASS (for improved aesthetics) are available - contact support. All male pipe threads come with a pre-applied sealant of fluoropolymer, however for subsequent use it is recommended that sealant, such as PTFE Thread Sealant be used. The push-to-connect fitting ends are self-sealing - do not use sealants at this connection. If tube disconnection is performed, it may be necessary to re-cut the end of the tubing to ensure perfect sealing when reattached.

**Values listed are typical for the material used in manufacture, except where noted, and are meant only as a guide to aid in design. Field testing should be performed to find the actual values for your application.

Part Number	Dimensions (Tube OD x Tube OD)
6201573	0.156" x 0.156"
6201587	0.25" x 0.25"
6201601	0.375" x 0.375"

* Limited stock item; lead times and minimums may apply -- contact support.

NewAge Industries

NewAge Industries is a leading independent, employee-owned manufacturer of fluid transfer systems that produce high-quality tubing, hose, fittings, clamps, and accessories and offers expert project guidance and services.

As a reliable provider that offers an exceptional customer experience, a culture of social responsibility, and a focus on sustainability, NewAge helps businesses engineer products that create a positive global impact.
