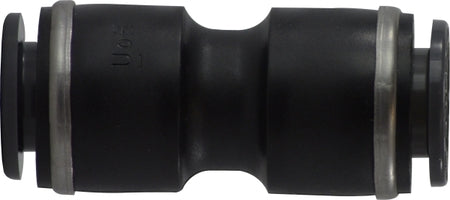

620532C Midland DOT Push-In Fitting - Straight Union - 5/32" Tube OD - Composite Body

620532C by Midland | DOT Push-In Fitting | Union | 5/32" Tube OD | Straight | Composite Body

Save $1.74

$15.67

$15.67 - $15.67

$15.67

$13.93

$13.93 - $13.93

$13.93

Midland Industries
Brass Fitting - D.O.T. Push-in Tube Fitting - Straight Union - Composite Body

Meets D.O.T. FMVSS 49 CFR 571.106, SAE J2494-3 Requirements.

Inventory @ Manufacturers Warehouse: 925 Units

Quantity

Specifications for Variant SKU: 620532C Midland
Shape (Orientation):	Straight
Ends Configuration:	5/32in Push-to-Connect, 5/32in Push-to-Connect, Some Ends Match
Material(s):	PBT, Brass
Seal Material(s):	Buna-N/Nitrile Rubber
Applicable Specs & Approvals:	D.O.T. FMVSS 49 571.106, SAE J2494-3

SPECIFICATIONS

Features:
One touch connection reduces installation time and cost. Rugged ultraviolet and vibration resistant composite body.
Warnings:
Composite DOT push-to-connect fittings are designed only for use in applications where air is utilized as an operating fluid. Fittings must be used in accordance with manufacturer and industry specifications. They are not intended for use in environments exceeding 145 PSI or 140°F. The Department of Transportation FMVSS 49CFR571-106 prohibits use of this type of fitting for connections between towed and towing vehicles or between a driveshaft and chassis. Using Composite DOT fittings in a manner inconsistent with manufacturer specifications may result in serious injury or property damage. Under no circumstances shall the supplier be liable to buyer for any consequential or incidental damages of any nature whatsoever arising from nonconformity of goods, defective goods, or delay in shipment or any other breach by seller.

	1. Chuck	Stainless Steel or Brass
	2. Body	Polybutylene Terephthalate (PBT), Brass
	3/4. Tube seal, O-Ring	Buna-N, Nitrile Rubber
	5. Stud	Brass
	6. Sealant	Flourine / Acrylic
	7. Guide	Stainless Steel or Polyacetal (Acetal)
	8. Stabilization Ring	Stainless Steel
	9. Release Button	Polyacetal, POM (Acetal)
	10. Tube support	Stainless Steel/ Brass

Part Number	Tube OD	Approx. Weight (Lbs.)
620532C	5/32"	0.01
620400C	1/4"	0.01
620600C	3/8"	0.03
620800C	1/2"	0.05
621000C	5/8"	0.08
