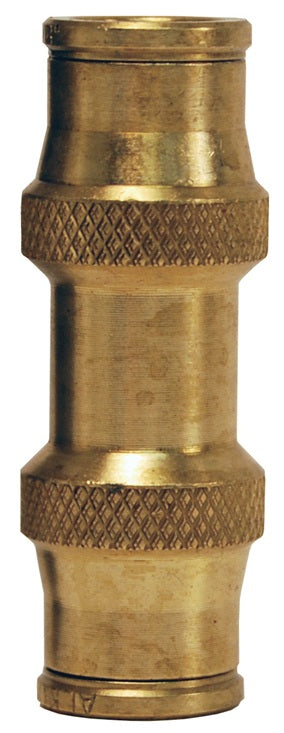

6212 by Dixon Valve | Push-In Fitting | Union | 3/8" Tube OD x 3/8" Tube OD | Forged Brass

Save $0.71 Save $0.71
Original price $7.03
Original price $7.03 - Original price $7.03
Original price $7.03
Current price $6.32
$6.32 - $6.32
Current price $6.32

Dixon Valve & Coupling
Push-In Fitting | Union | Tube End x Tube End


Specifications for Variant SKU: 6212 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Push-To-Connect, 3/8in Push-To-Connect, Some Ends Match
Material(s): Brass
Use:
  • Suitable for vacuum service.
  • Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
  • Positive seal: no leaks, after tubing is inserted, seal is made.
  • Secure tube retention: pulling on tubing only serves to tighten the connection.
  • Full flow design provides up to 60% more flow than conventional fittings with internal tube supports.
  • Supplied with gasket.
Construction:
  • Forged Brass
Specifications:
  • Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
  • Saves up to 75% of assembly time versus the standard compression fittings.
  • Quick connect: simply push tubing in, no tools required.
  • Quick disconnect: hold two fingers on insert and pull tubing out, no tools required.
  • Reusable: connect and disconnect numerous times.
Part Number Tube O.D.
624 1/8"
625 5/32"
628 1/4"
6212 3/8"
6216 1/2"
