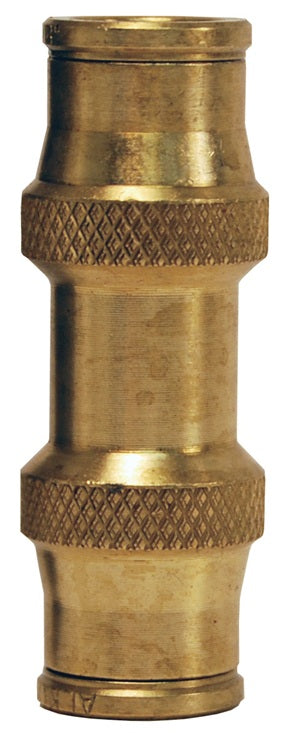

6216 by Dixon Valve | Push-In Fitting | Union | 1/2" Tube OD x 1/2" Tube OD | Forged Brass

Name: 6216 by Dixon Valve | Push-In Fitting | Union | 1/2" Tube OD x 1/2" Tube OD | Forged Brass
Brand: Dixon
SKU: 6216 Dixon
Price: 8.59 USD
Availability: InStock

Save $0.94

$9.53

$9.53 - $9.53

$9.53

$8.59

$8.59 - $8.59

$8.59

Dixon Valve & Coupling
Push-In Fitting | Union | Tube End x Tube End

Quantity

Specifications for Variant SKU: 6216 Dixon
Shape (Orientation):	Straight
Ends Configuration:	1/2in Push-To-Connect, 1/2in Push-To-Connect, Some Ends Match
Material(s):	Brass

Use:
Suitable for vacuum service. Working pressure: suitable for use up to the maximum working pressure of the plastic tubing used.
Features:
Positive seal: no leaks, after tubing is inserted, seal is made. Secure tube retention: pulling on tubing only serves to tighten the connection. Full flow design provides up to 60% more flow than conventional fittings with internal tube supports. Supplied with gasket.
Construction:
Forged Brass
Specifications:
Temperature range: -10°F to 200°F (-23°C to 93°C)
Safety Notes:
Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
Installation:
Saves up to 75% of assembly time versus the standard compression fittings. Quick connect: simply push tubing in, no tools required. Quick disconnect: hold two fingers on insert and pull tubing out, no tools required. Reusable: connect and disconnect numerous times.

Part Number	Tube O.D.
624	1/8"
625	5/32"
628	1/4"
6212	3/8"
6216	1/2"
