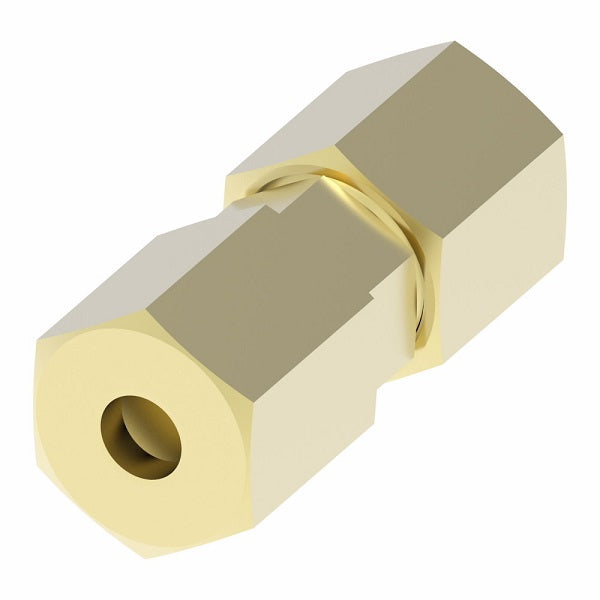

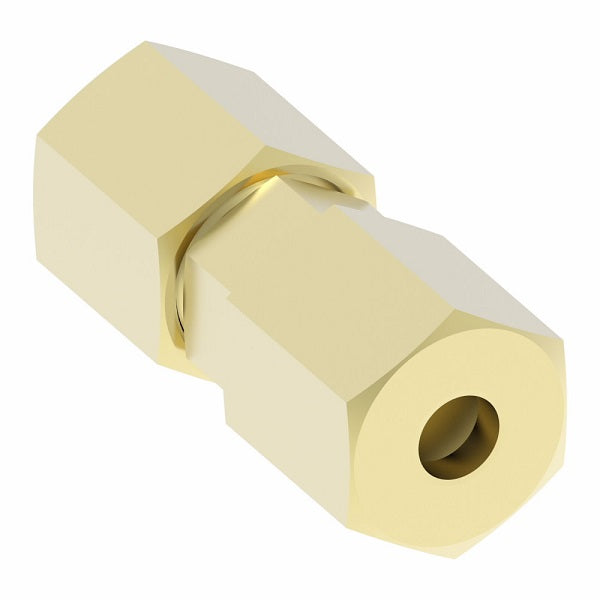

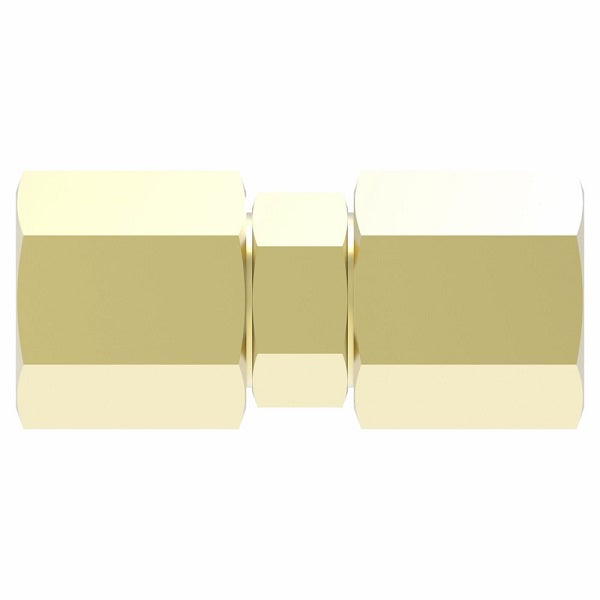

621X4 by Danfoss | SelfAlign Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Brass
621X4 by Danfoss | SelfAlign Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Brass
621X4 by Danfoss | SelfAlign Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Brass
621X4 by Danfoss | SelfAlign Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Brass

621X4 by Danfoss | SelfAlign Adapter | Union | 1/4" Tube OD x 1/4" Tube OD | Brass

$5.65 - $5.65
$5.65
$5.65 - $5.65
$5.65

Aeroquip® by Danfoss
SelfAlign Adapter - Union
SelfAlign End x SelfAlign End
Straight
Specifications for Variant SKU: 621X4 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Hex
C		 D I L
621X2 1/8" 5/16" 0.94" 0.25" 0.66"
621X3 3/16" 3/8" 0.125" 0.28" 0.76"
621X4 1/4" 7/16" 0.188" 0.31" 0.79"
621X5 5/16" 1/2" 0.250" 0.34" 0.88"
621X6 3/8" 9/16" 0.312" 0.38" 0.97"
621X8 1/2" 11/16" 0.406" 0.44" 1.10"
621X10 5/8" 13/16" 0.500" 0.50" 1.25"
