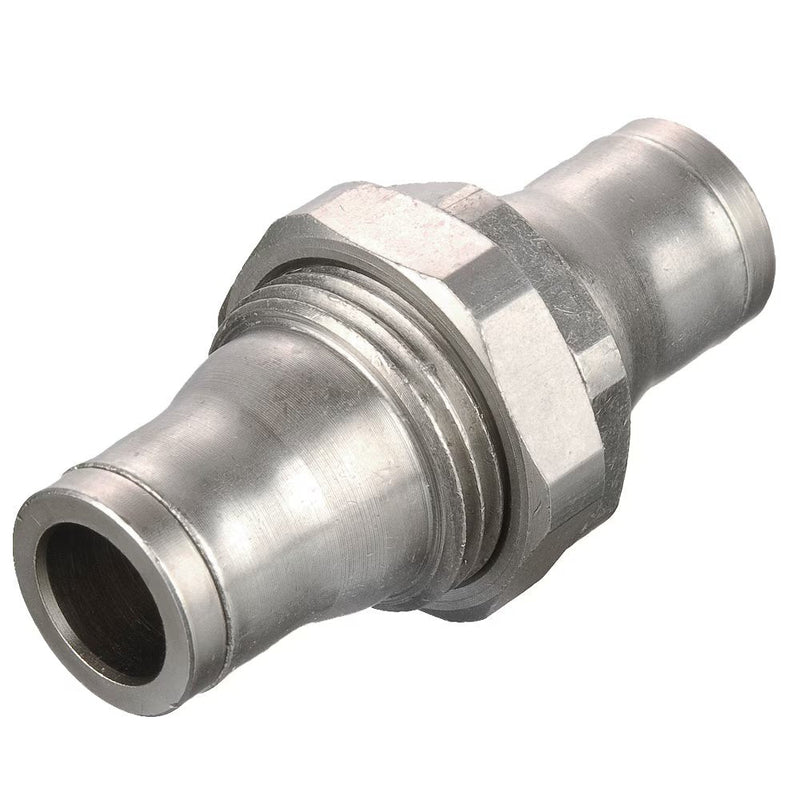

62PLMBH-6 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 3/8" Bulkhead Connector Tube Size | .95" Height | .95" Width | | 1.97" Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

62PLMBH-6 by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 3/8" Bulkhead Connector Tube Size | .95" Height | .95" Width | | 1.97" Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $15.41 Save $15.41
$169.50
$169.50 - $169.50
$169.50
$154.09
$154.09 - $154.09
$154.09

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:62PLMBH Bulkhead Connector Inch Tube to Tube

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLMBH-6 Parker | 10 |
Series: 62PLMBH Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size F1 F2 K L1 L2 T
62PLMBH-4 1/4" 16 mm 17 mm .69" .67" .89" .59"
62PLMBH-6 3/8" 22 mm 27 mm .95" .87" 1.10" .85"
62PLMBH-8 1/2" 24 mm 24 mm 1.16" .89" 1.14" 1.04"
