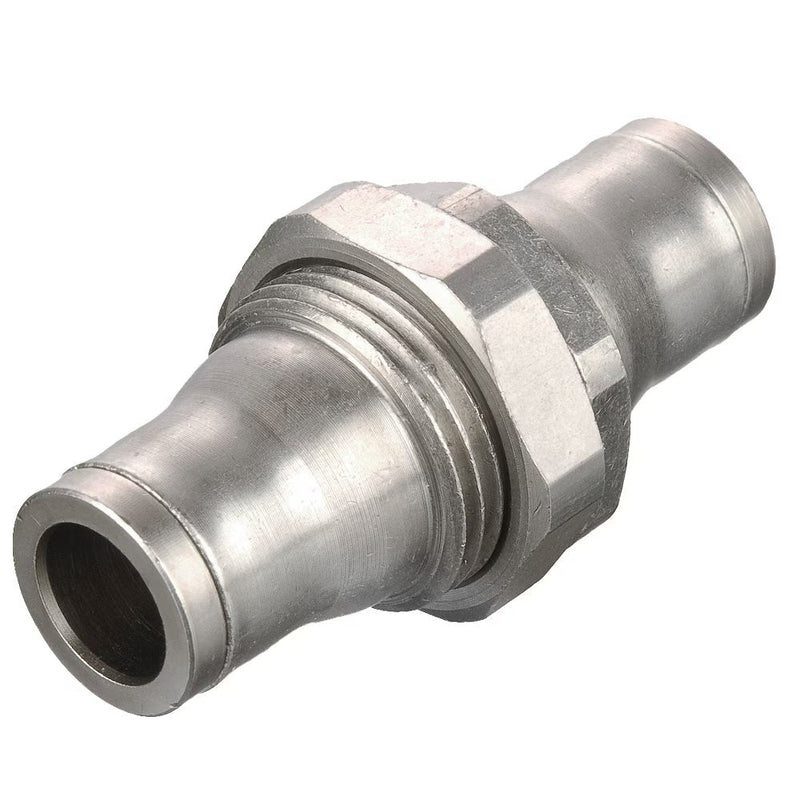

62PLMBH-8M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 8 mm Tube Size | 19.50 mm Height | 19.50 mm Width | 42.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

62PLMBH-8M by Parker | Prestolok PLM Metal Push-to-Connect Fittings | Bulkhead | 8 mm Tube Size | 19.50 mm Height | 19.50 mm Width | 42.00 mm Length | Straight | Electroless Nickel-Plated Brass | Pack of 10

Save $14.13 Save $14.13
$155.40
$155.40 - $155.40
$155.40
$141.27
$141.27 - $141.27
$141.27

by Parker Hannifin
Prestolok PLM Metal Push-to-Connect Fittings:62PLMBH Bulkhead Connector Metric Tube to Tube

Package Quantity: 10 Units

Specifications for Variant SKU: 62PLMBH-8M Parker | 10 |
Series: 62PLMBH Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass
Special Properties: Food Grade, Corrosion Resistance, Chemical Resistance, Abrasion Resistance, Silicone Free
Product Features:
  • High phosphorous, FDA-compliant, chemical resistant, nickel-plated collet and body
  • FKM seal
  • Chemical, corrosion, and abrasion resistance
  • NPT, BSPT, BSPP, and metric threads
  • Silicone Free
Markets:
  • Industrial
  • Chemical
  • Life Science
  • Semi-conductors
  • Automation
  • Food Processing
Compatible Media:
  • Food Fluids
  • Harsh Detergents
  • Cleaning In Cold/Hot Water
  • Steam
  • Oils
  • Compressed Air
  • Inert Gases
Pressure Range: Up to 435 psi (30 bar)
290 psi (19.9 bar) for 169PLM
Vacuum Rating: 28" Hg
Temperature Range: -13° to +302° F (-25° to +150° C)
Compatible Tubing:
  • Polyethylene
  • Polyurethane 95 Durometer Shore A*
  • Nylon
  • FEP
Part Number Tube Size F1 F2 K L1 L2 T
62PLMBH-4M 4 mm 13 mm 14 mm 14.00 mm 14.00 mm 20.00 mm 12.50 mm
62PLMBH-6M 6 mm 16 mm 17 mm 17.50 mm 17.00 mm 22.00 mm 15.00 mm
62PLMBH-8M 8 mm 18 mm 19 mm 19.50 mm 18.50 mm 23.50 mm 17.00 mm
62PLMBH-10M 10 mm 22 mm 27 mm 24.00 mm 21.50 mm 26.50 mm 21.00 mm
62PLMBH-12M 12 mm 24 mm 24 mm 26.00 mm 23.00 mm 27.00 mm 23.50 mm
62PLMBH-14M 14 mm 27 mm 27 mm 29.50 mm 25.50 mm 29.50 mm 25.00 mm
Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
