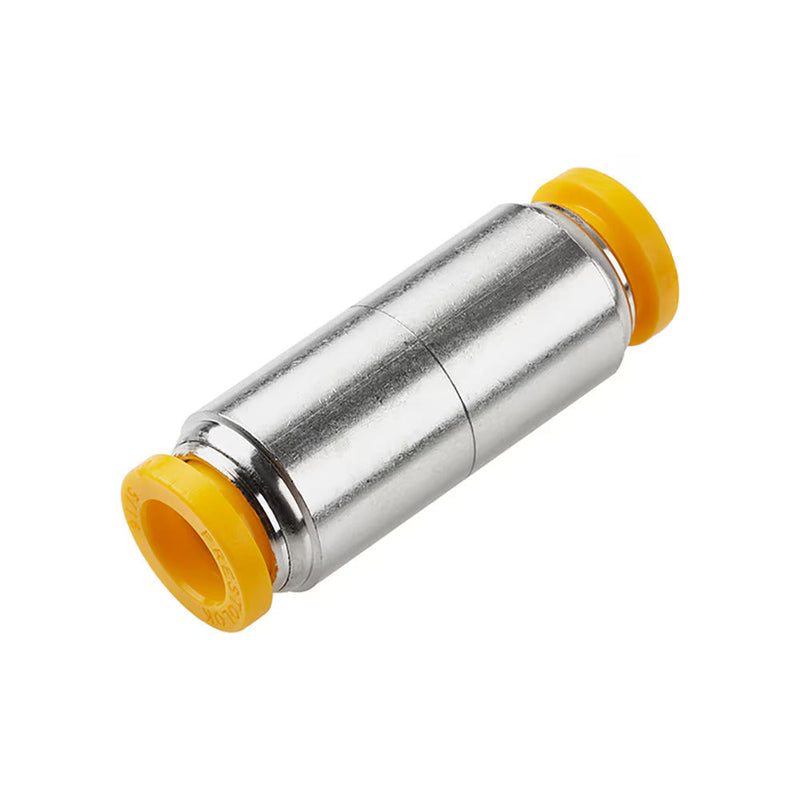

62PLP-6M-8M by Parker | Prestolok PLP Push-to-Connect Fittings | Tube to Tube | 6mm Tube Size Unequal Union x 8mm Tube Size | 14.27mm O.D | 40.59mm Length | 6.22 Flow Dia. | Straight | Nickel-Plated Brass | Pack of 10

Save $6.77

$74.44

$74.44 - $74.44

$74.44

$67.67

$67.67 - $67.67

$67.67

by Parker Hannifin
Push-to-Connect Fittings:62PLP Unequal Union – Metric

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 62PLP-6M-8M Parker \| 10 \|
Series:	62PLP Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Corrosion Resistance, Flame Resistant Release Button

Product Features:	Stainless steel grab ring Nickel-plated brass body Nitrile seal Flame resistant release button Corrosion resistance Inch and metric tube connections NPT, BSPP, BSPT, and metric threads Meets UL94 V-0 Flame Resistance Standard
Markets:	Industrial Automotive Climate Control Welding Robotic Welding
Compatible Media:	Compressed Air Inert Gases Vacuum
Pressure Range:	Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range:	0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating:	28" Hg
Compatible Tubing:	95FR Microweld Polyethylene Polypropylene Semi Rigid Nylon Rigid Nylon Polyurethane 95 Durometer Shore A


Part Number	Tube Size 1 (mm)	Tube Size 2 (mm)	O.D.	Length (L)	Flow Diameter (D)
62PLP-4M-6M	4 mm	6 mm	12.70 mm	34.94 mm	4.17 mm
62PLP-6M-8M	6 mm	8 mm	14.27 mm	40.59 mm	6.22 mm
62PLP-8M-10M	8 mm	10 mm	17.46 mm	41.36 mm	10.26 mm
62PLP-10M-12M	10 mm	12 mm	19.05 mm	44.42 mm	12.24 mm

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
