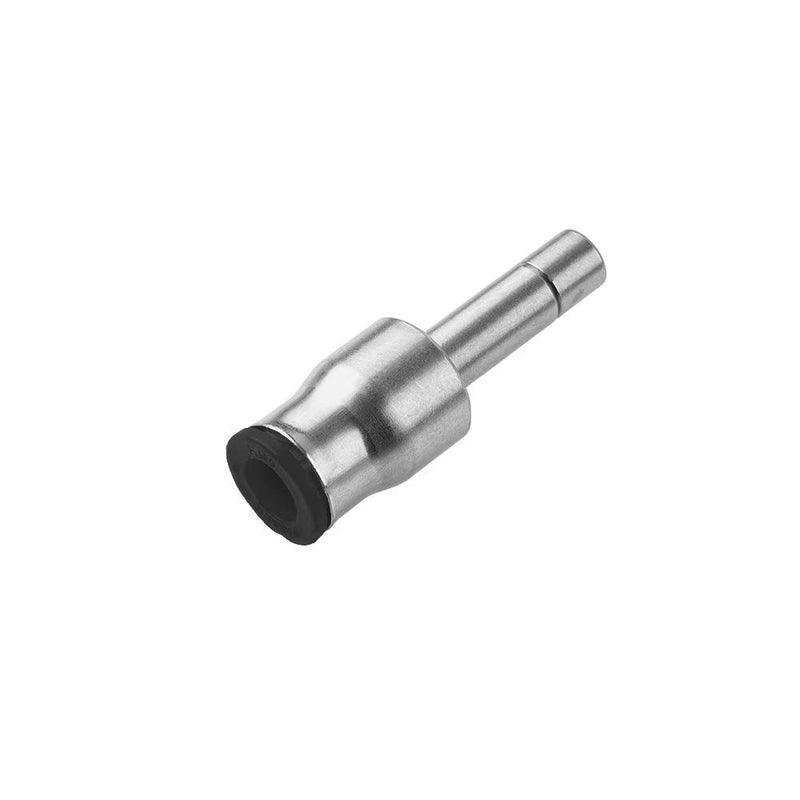

62PLPSP-6-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube Expanders | 3/8" Tube Size x 1/4" Tube Size | 1.66" Length | .89" Length 1 | Straight | Nickel-Plated Brass

62PLPSP-6-4 by Parker | Prestolok PLP Push-to-Connect Fittings | Tube Expanders | 3/8" Tube Size x 1/4" Tube Size | 1.66" Length | .89" Length 1 | Straight | Nickel-Plated Brass

Save $0.80 Save $0.80
$8.78
$8.78 - $8.78
$8.78
$7.98
$7.98 - $7.98
$7.98

by Parker Hannifin
Push-to-Connect Fittings:62PLPSP – Tube Expander – Inch
Specifications for Variant SKU: 62PLPSP-6-4 Parker
Series: 62PLPSP Series
Shape (Orientation): Straight
Material(s): Nickel-Plated Brass, Stainless Steel, PVDF
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Corrosion Resistance, Flame Resistant Release Button
Product Features:
  • Stainless steel grab ring
  • Nickel-plated brass body
  • Nitrile seal
  • Flame resistant release button
  • Corrosion resistance
  • Inch and metric tube connections
  • NPT, BSPP, BSPT, and metric threads
  • Meets UL94 V-0 Flame Resistance Standard
Markets:
  • Industrial
  • Automotive
  • Climate Control
  • Welding
  • Robotic Welding
Compatible Media:
  • Compressed Air
  • Inert Gases
  • Vacuum
Pressure Range: Up to 300 PSI (20.6 bar) depending on tubing
Temperature Range: 0° to +200° F (-17.7° to 93.3° C)
Vacuum Rating: 28" Hg
Compatible Tubing:
  • 95FR Microweld
  • Polyethylene
  • Polypropylene
  • Semi Rigid Nylon
  • Rigid Nylon
  • Polyurethane 95 Durometer Shore A
Part Number Tube Size 1 Tube Size 2 Length (L) Length (L1)
62PLPSP-4-5/32 1/4" 5/32" 1.39" .71"
62PLPSP-6-4 3/8" 1/4" 1.66" .89"
