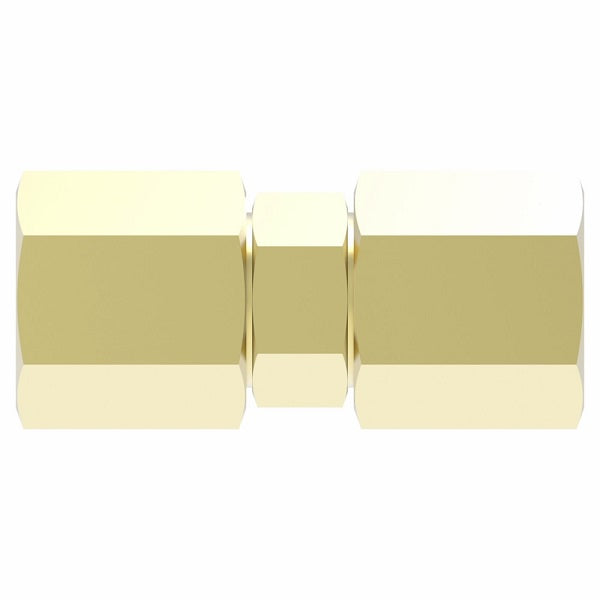

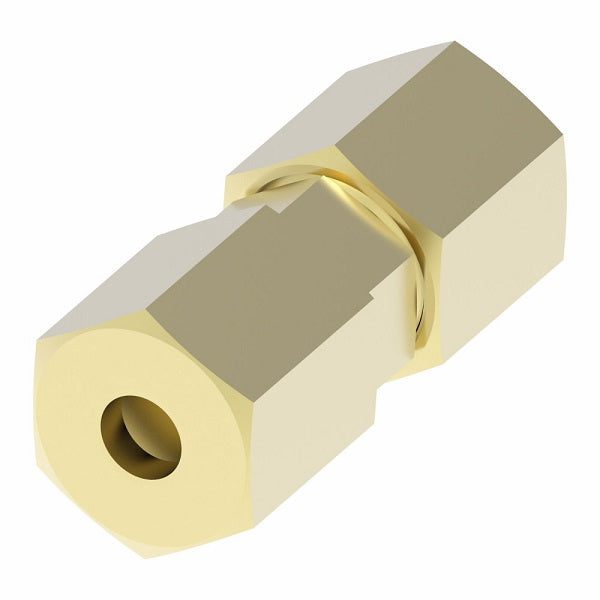

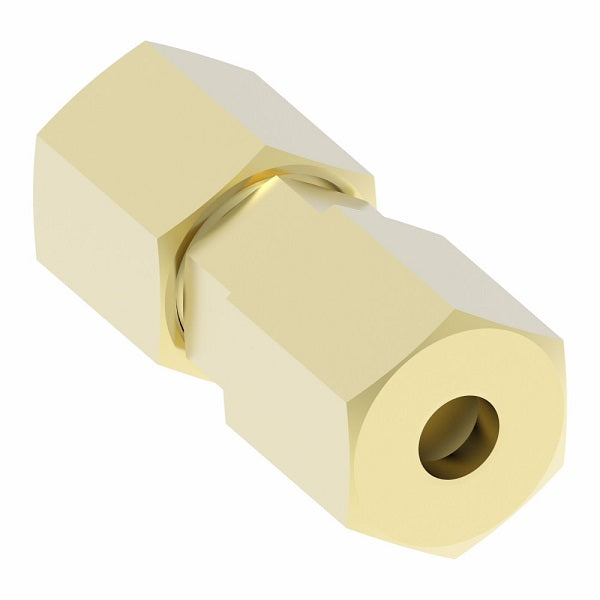

62X4 by Danfoss | Compression Fitting | Union | 1/4" Tube OD | Brass

62X4 by Danfoss | Compression Fitting | Union | 1/4" Tube OD | Brass Pack of 10

$56.92 - $56.92

$56.92

$56.92 - $56.92

$56.92

Aeroquip® by Danfoss
Compression Fitting - Union
Compression End x Compression End
Straight

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 62X4-BG Danfoss \| 10 \|
Shape (Orientation):	Straight
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Low cost. No flaring. Easy to assemble. Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
CA360 Brass
Pressure:
Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic tubing, use the working pressure for type used.
Temperature Range:
65°F to +250°F (-53°C to +121°C) with metal tubing. When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
Ref. SAE No. 060101BA Meets specifications and standards of ASA, ASME and SAE.

Tube OD	1/8"	3/16"	1/4"	5/16"	3/8"	7/16"	1/2"	5/8"	3/4"	1"
Thread Size	5/16-24	3/8-24	7/16-24	1/2-24	9/16-24	5/8-24	11/16-20	13/16-18	1-18	1-1/4-18


Brass Part Number	Brass Body Only Part Number	Tube O.D.	Hex C	L	Thread Size
62X2	B62X2	1/8"	5/16"	0.094"	0.66"
62X3	B62X3	3/16"	3/8"	0.125"	0.76"
62X4	B62X4	1/4"	7/16"	0.188"	0.79"
62X5	B62X5	5/16"	1/2"	0.250"	0.88"
62X6	B62X6	3/8"	9/16"	0.312"	0.97"
62X8	B62X8	1/2"	11/16"	0.406"	1.10"
62X8	B62X10	5/8"	13/16"	0.500"	1.25"
