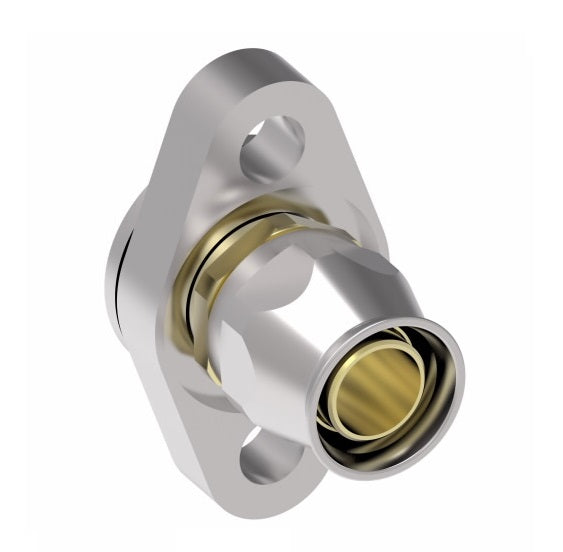

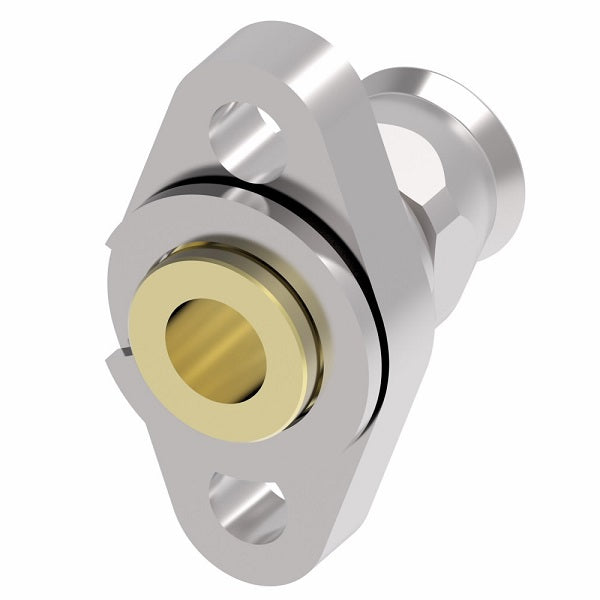

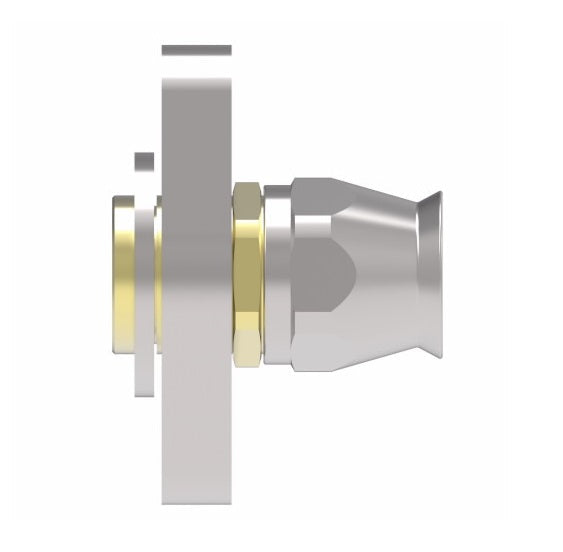

63-190626-12 Aeroquip by Danfoss | 2-Bolt Swivel Flange Super Gem PTFE Reusable Hose Fitting | -12 2-Bolt Swivel Flange x -12 Reusable Hose End | Steel & Brass

63-190626-12 Aeroquip by Danfoss | 2-Bolt Swivel Flange Super Gem PTFE Reusable Hose Fitting | -12 2-Bolt Swivel Flange x -12 Reusable Hose End | Steel & Brass

Name: 63-190626-12 Aeroquip by Danfoss | 2-Bolt Swivel Flange Super Gem PTFE Reusable Hose Fitting | -12 2-Bolt Swivel Flange x -12 Reusable Hose End | Steel & Brass
Brand: Danfoss/Eaton
SKU: 63-190626-12 Danfoss
Price: 90.17 USD
Availability: InStock

$90.17 - $90.17

$90.17

$90.17 - $90.17

$90.17

Aeroquip® by Danfoss
Super Gem Reusable Hose Fitting for PTFE Hose - 2-Bolt Swivel Flange - Straight

(Formerly Eaton Aeroquip)

Quantity

Specifications for Variant SKU: 63-190626-12 Danfoss
Shape (Orientation):	Straight
Material(s):	Steel, Brass
Compatible with the following Series:	2807 Series \| SC-TW Series \| S-TW Series

Technical Info:
Reusable Fitting Socket Data.PDF


Steel & Brass Part Number	Hose Size	Flange Head Diameter	A	D	EØ	Sleeve Brass Part Number
-	-06	2.88	1.78"	1.26"	0.28"	900568-6B
63-190626-12	-12	2.88	2.07"	1.42"	0.56"	900568-12B
-	-16	2.88	2.18"	1.49"	0.19"	900568-16B

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
