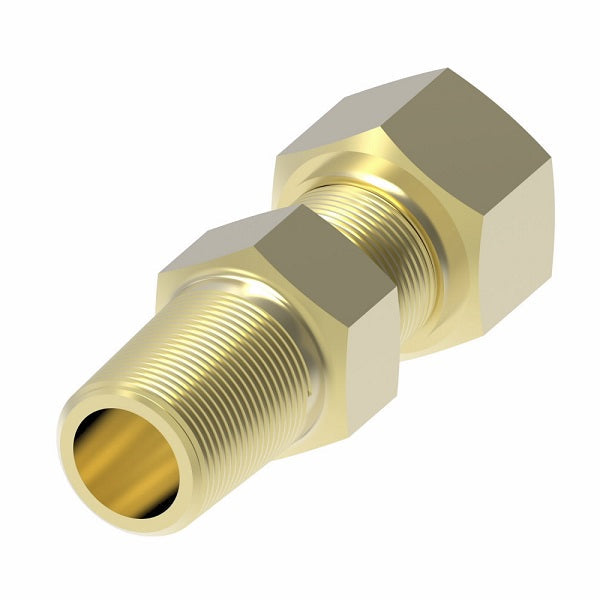

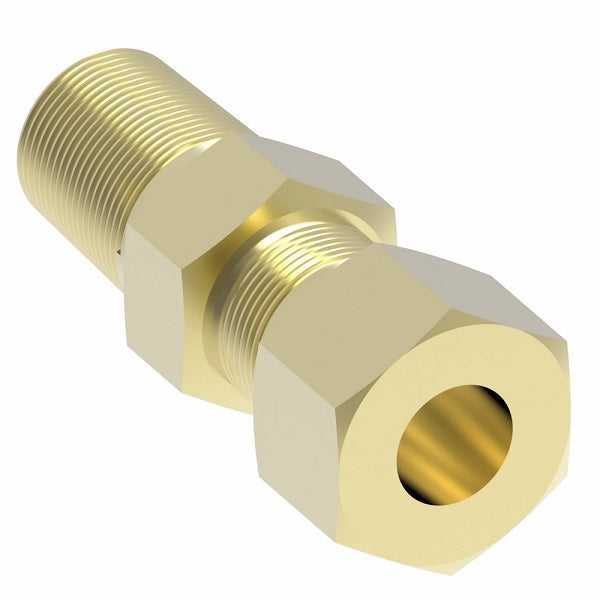

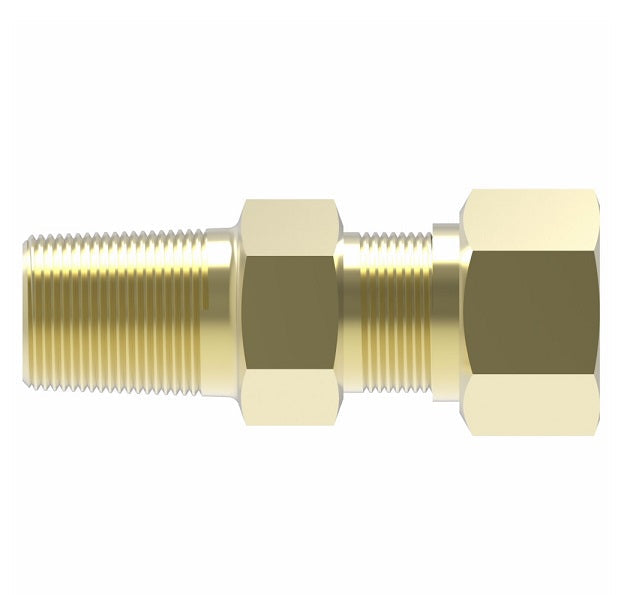

631X6 by Danfoss | SelfAlign Adapter | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass
631X6 by Danfoss | SelfAlign Adapter | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass
631X6 by Danfoss | SelfAlign Adapter | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass
631X6 by Danfoss | SelfAlign Adapter | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass

631X6 by Danfoss | SelfAlign Adapter | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass

$30.51 - $30.51
$30.51
$30.51 - $30.51
$30.51

Aeroquip® by Danfoss
SelfAlign Adapter - Male Ball Check Connector
SelfAlign End x Male NPTF
Straight

Min. pressure 3 psi. Ball and spring position may be reversed to change flow/check direction. Ballcheck valves are neither tested nor adjusted prior to sale.
Specifications for Variant SKU: 631X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/4in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D L
631X4 1/4" 1/8" 7/16" 0.125" 0.88"
631X6 3/8" 1/4" 9/16" 0.219" 1.16"
