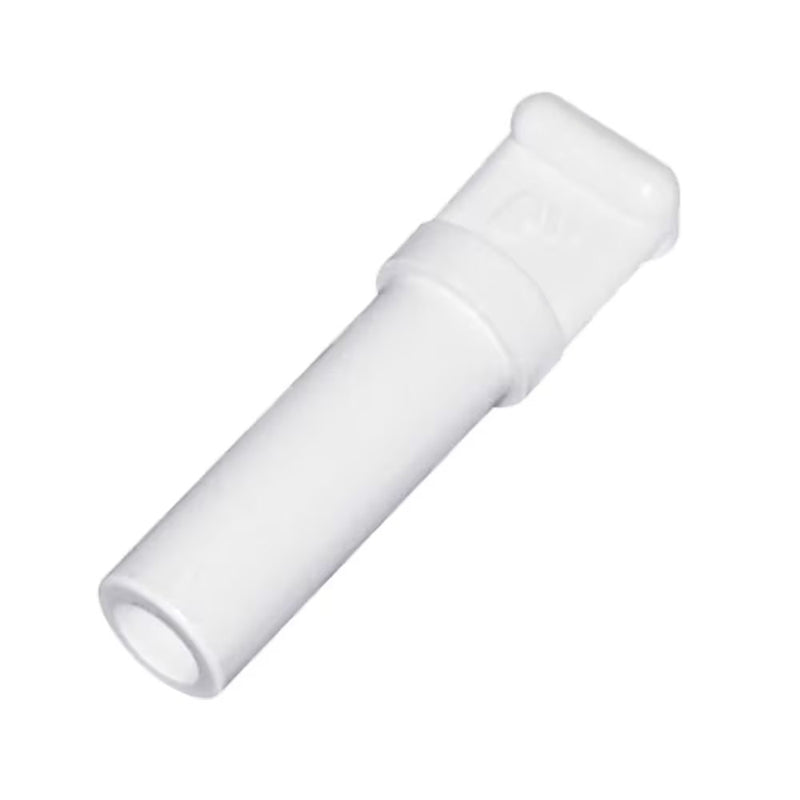

6326 56 00WP2 by Parker | Legris Blanking Plug | 1/4" Tube Size | 36.5 mm Length | Polymer | Pack of 10

Save $0.32

$5.39

$5.39 - $5.39

$5.39

$5.07

$5.07 - $5.07

$5.07

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Accessories:6326 Blanking Plug

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6326 56 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6326 Series
Shape (Orientation):	No Orientation
Material(s):	Polymer
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	G	L	L1	Kg
6326 56 00WP2	1/4"	8 mm	36.5 mm	22 mm	.002 Kg
6326 60 00WP2	3/8"	11.6 mm	42.5 mm	22 mm	.002 Kg
6326 62 00WP2	1/2"	14.7 mm	48.5 mm	21.5 mm	.004 Kg

5/32” (4 mm) and 5/16” (8 mm) also available

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
