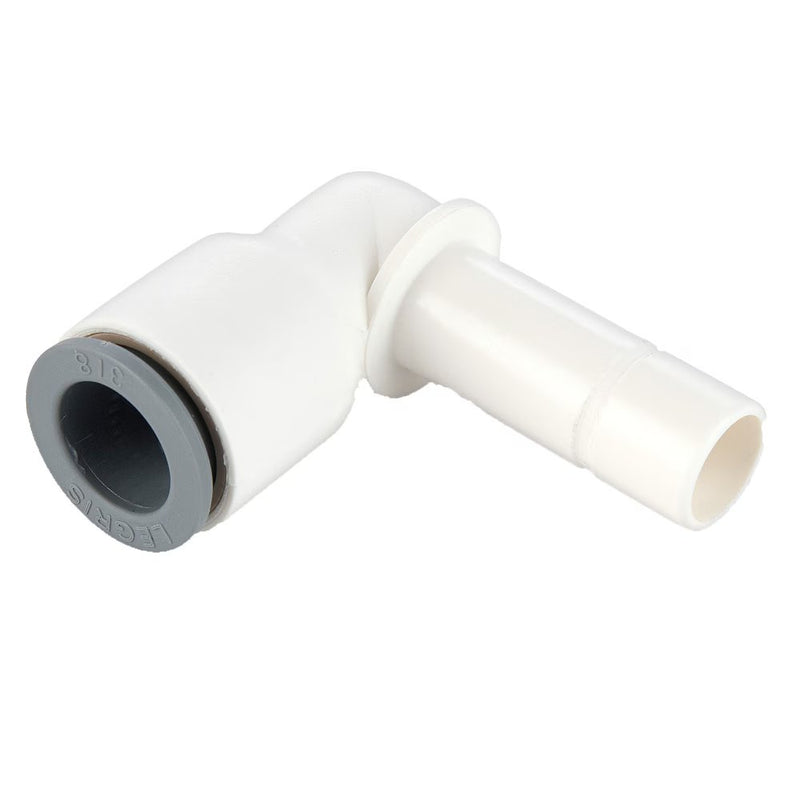

6382 08 60WP2 by Parker | Legris Plug-In Fitting | 5/16" Tube Size x 3/8" Tube Size | 39 mm Length | 90° Elbow | Polymer | Pack of 10

Save $3.89

$61.89

$61.89 - $61.89

$61.89

$58.00

$58.00 - $58.00

$58.00

by Parker Hannifin
LIQUIfit® Push-In Fittings / Plug-In Fittings:6382 Equal and Unequal Plug-In Elbow

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6382 08 60WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6382 Series
Shape (Orientation):	90° Elbow
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	ØD1	G	H (mm)	H1 (mm)	H2 (mm)	L (mm)	H (in)	H1 (in)	H2 (in)	L (in)	Kg
6382 08 60WP2	5/16"	3/8"	16 mm	39 mm	10 mm	24.5 mm	26 mm	-	-	-	-	.009 Kg
6382 56 00WP2	1/4"	1/4"	11 mm	30.5 mm	11 mm	18 mm	18 mm	-	-	-	-	.002 Kg
6382 56 60WP2	1/4"	3/8"	16 mm	39 mm	9 mm	24.5 mm	25.5 mm	-	-	-	-	.009 Kg
6382 60 00WP2	3/8"	3/8"	16 mm	39 mm	9 mm	24.5 mm	26.5 mm	-	-	-	-	.005 Kg
6382 60 56WP2	3/8"	1/4"	-	-	-	-	-	1.26"	.43"	.71"	1.04"	-
6382 62 00WP2	1/2"	1/2"	22 mm	49 mm	13 mm	28.5 mm	36 mm	-	-	-	-	.004 Kg

Equal plug-in elbow: 5/32” (4 mm) and 5/16” (8 mm) also available

The references in diameter 4mm and 12mm are not grooved in standard version
