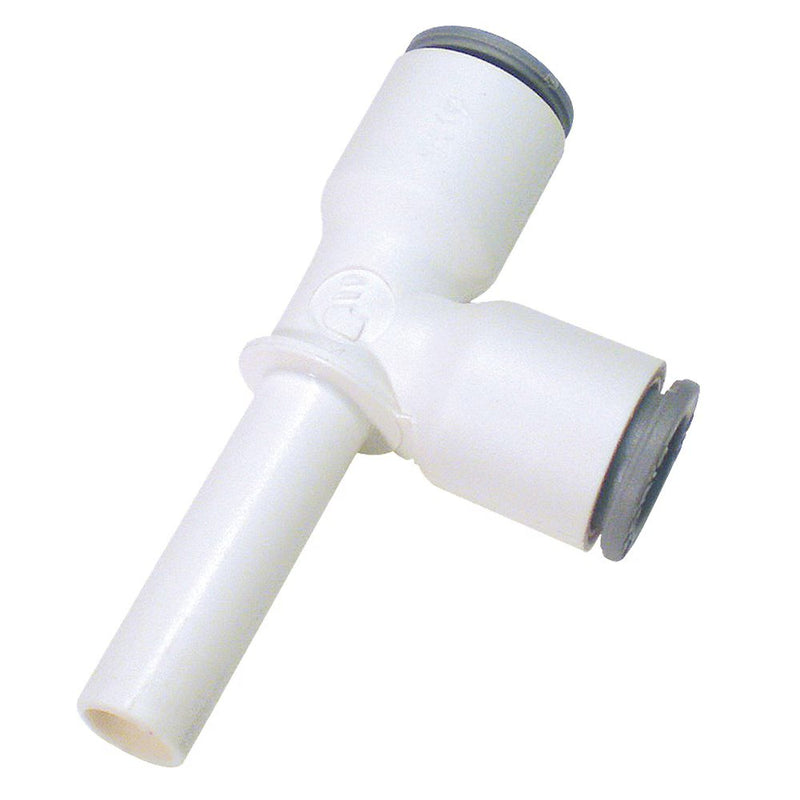

6383 60 00WP2 by Parker | LIQUIfit® Plug-In Fitting | 3/8" Push-to-Connect x 3/8" Tube Stem | 2.24" Length | Tee | Nylon | Pack of 10

Save $2.58

$40.85

$40.85 - $40.85

$40.85

$38.27

$38.27 - $38.27

$38.27

by Parker Hannifin
LIQUIfit Fittings:6383 Plug-In Run Tee Inch Tube to Stem

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6383 60 00WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6383 Series
Shape (Orientation):	Tee
Material(s):	Nylon, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free

Product Features:	Stainless steel grab ring Bio-sourced nylon 11 EPDM D – seal FDA compliant, NSF/ANSI 51 and NSF/ANSI/CAN 61 Silicone free 100% leak tested in production Date coding to guarantee quality and traceability
Markets:	Water Filtration Beverage Dispensing Life Science Bottling Semi-Conductor
Applications:	Water Beverages Food CO2 Vacuum
Pressure Range:	Up to 230 PSI (16 bar)
Temperature Range:	+35° to +200° F (+1.7° to +93.3° C)
Compatible Tubing:	Polyethylene


Part Number	Tube Size 1	Tube Size 2	H	H1	H2	L
6383 56 00WP2	1/4"	1/4"	1.20"	.43"	.71"	.71"
6383 60 00WP2	3/8"	3/8"	2.24"	.43"	.94"	1.04"
6383 62 00WP2	1/2"	1/2"	1.93"	.71"	1.12"	1.42"

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
