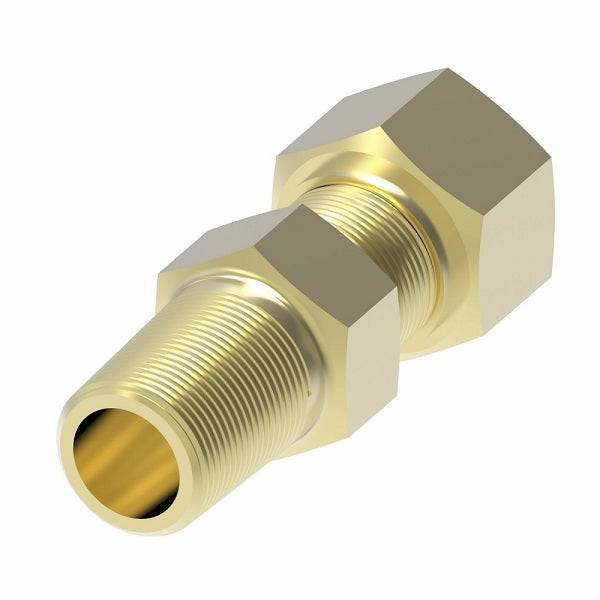

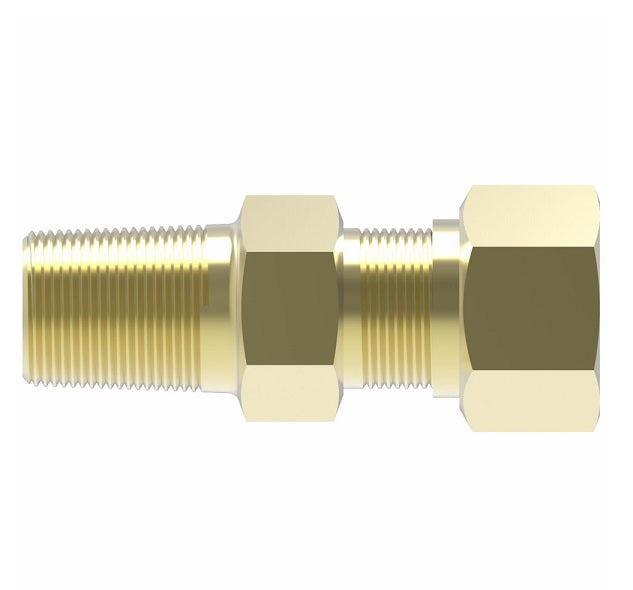

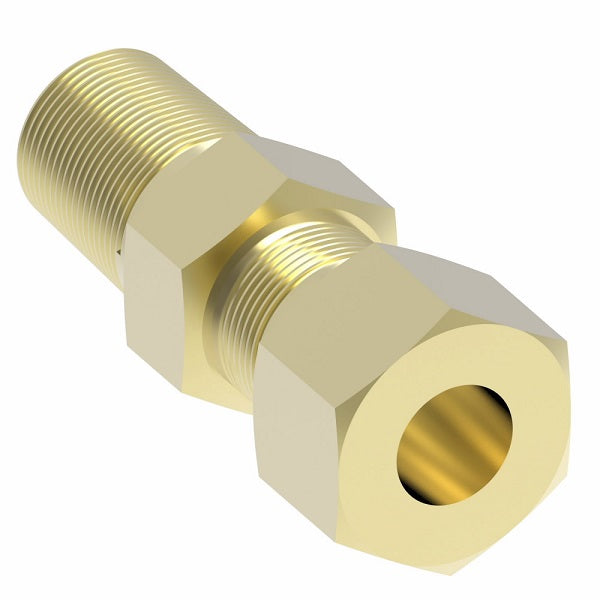

63X6 by Danfoss | Compression Fitting | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass
63X6 by Danfoss | Compression Fitting | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass
63X6 by Danfoss | Compression Fitting | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass
63X6 by Danfoss | Compression Fitting | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass

63X6 by Danfoss | Compression Fitting | Male Ball Check Connector | 3/8" Tube OD x 1/4" Male NPTF | Brass

$30.37 - $30.37
$30.37
$30.37 - $30.37
$30.37

Aeroquip® by Danfoss
Compression Fitting - Male Ball Check Connector
Compression End x Male NPTF
Straight

Min. working pressure 3 psi. Ball and spring position may be reversed to change flow/check direction. Ball check valves are neither tested nor adjusted prior to sale.
Specifications for Variant SKU: 63X6 Danfoss
Shape (Orientation): Straight
Ends Configuration: 3/8in Tube Compression, 1/4in Male NPTF
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
Body Only
Part Number 		Tube O.D. Male Pipe Thread Hex
C		 D L
63X4 B63X4 1/4" 1/8" 7/16" 0.125" 0.88"
63X6 B63X6 3/8" 1/4" 9/16" 0.219" 1.16"
