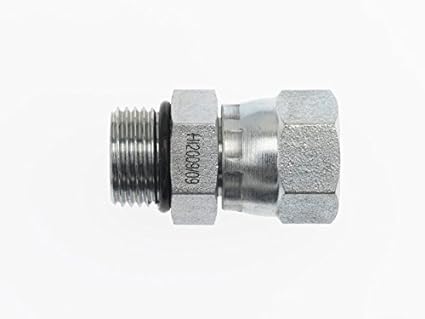

6402-12-12-O by Brennan Inc. | -12 Male O-Ring Boss x -12 Female JIC Swivel | Straight | Steel

6402-12-12-O by Brennan Inc. | -12 Male O-Ring Boss x -12 Female JIC Swivel | Straight | Steel

$6.40 - $6.40
$6.40
$8.12
$8.12 - $8.12
$8.12

Brennan Inc.
Tube Fittings & Adapters: 6402-O - Male O-Ring Boss x Female JIC Swivel Straight
Specifications for Variant SKU: 6402-12-12-O Brennan
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Boss, 3/4in Female JIC
Material(s): Steel
Special Properties: Swivel
Part Number Material Tube O.D B SAEORB B SAE37° B Drill A Drill L Length L1 Length C1 Hex C Hex
6402-04-04-O Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 0.96" 1.31" 0.562" 0.562"
6402-04-06-O Steel 1/4" 7/16-20" 9/16-18" 0.172" 0.297" 1.04" 1.41" 0.688" 0.562"
6402-06-04-O Steel 3/8" 9/16-18" 7/16-20" 0.172" 0.172" 1.060" 1.410" 0.562" 0.688"
6402-06-06-O Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.05" 1.43" 0.688" 0.688"
6402-06-08-O Steel 3/8" 9/16-18" 3/4-16" 0.297" 0.391" 1.200" 1.620" 0.875" 0.750"
6402-08-06-O Steel 1/2" 3/4-16" 9/16-18" 0.391" 0.297" 1.21" 1.58" 0.688" 0.875"
6402-08-08-O Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.23" 1.65" 0.875" 0.875"
6402-08-10-O Steel 1/2" 3/4-16" 7/8-14" 0.391" 0.391" 1.300" 1.800" 1.000" 0.875"
6402-10-08-O Steel 5/8" 7/8-14" 3/4-16" 0.484" 0.391" 1.37" 1.79" 0.875" 1.000"
6402-10-10-O Steel 5/8" 7/8-14" 7/8-14" 0.484" 0.484" 1.390" 1.890" 1.000" 1.000"
6402-12-10-O Steel 3/4" 1-1/16-12" 7/8-14" 0.484" 0.484" 1.420" 1.920" 1.000" 1.250"
6402-12-12-O Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.58" 2.14" 1.250" 1.250"
6402-12-16-O Steel 3/4" 1-1/16-12" 1-5/16-12" 0.609" 0.844" 1.67" 2.26" 1.500" 1.500"
6402-16-12-O Steel 1" 1-5/16-12" 1-1/16-12" 0.844" 0.609" 1.570" 2.140" 1.250" 1.500"
6402-16-16-O Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 1.666" 2.260" 1.500" 1.500"
6402-20-20-O Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 1.80" 2.42" 2.000" 1.875"
6402-24-24-O Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 1.870" 2.611" 2.250" 2.125"
6402-32-32-O Steel 2" 2-1/2-12" 2-1/2-12" 1.781" 1.781" 2.01" 2.95" 2.875" 2.750"

6402-04-04-O-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.172" 0.172" 0.96" 1.31" 0.562" 0.562"
6402-04-06-O-SS Stainless Steel 1/4" 7/16-20" 9/16-18" 0.172" 0.297" 1.04" 1.41" 0.688" 0.562"
6402-06-06-O-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.297" 0.297" 1.05" 1.43" 0.688" 0.688"
6402-06-08-O-SS Stainless Steel 3/8" 9/16-18" 3/4-16" 0.297" 0.391" 1.200" 1.620" 0.875" 0.750"
6402-08-06-O-SS Stainless Steel 1/2" 3/4-16" 9/16-18" 0.391" 0.297" 1.21" 1.58" 0.688" 0.875"
6402-08-08-O-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.391" 0.391" 1.23" 1.65" 0.875" 0.875"
6402-12-12-O-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.609" 0.609" 1.58" 2.14" 1.250" 1.250"
6402-16-16-O-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.844" 0.844" 1.666" 2.260" 1.500" 1.500"
6402-20-20-O-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.078" 1.078" 1.80" 2.42" 2.000" 1.875"
6402-24-24-O-SS Stainless Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.312" 1.312" 1.870" 2.611" 2.250" 2.125"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
