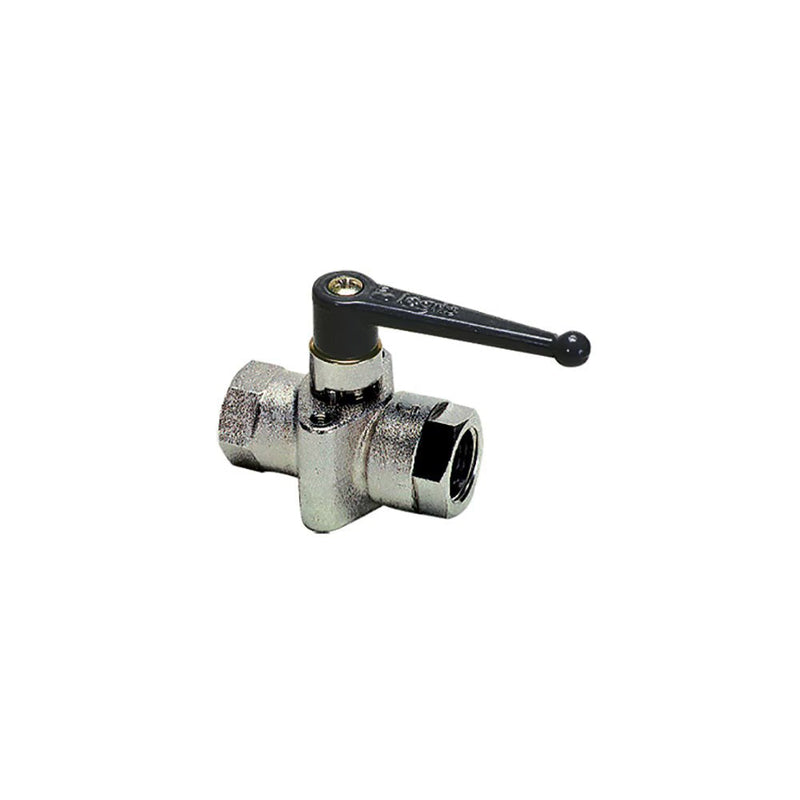

6402 20 27 by Parker | Legris In-Line Ball Valve for Screw Fixing | 3/4" Female BSPP Thread | 32 mm Hex (F) | 38 mm Hex (F1) | Straight | Nickel-Plated Brass | Pack of 2

Save $7.24

$397.88

$397.88 - $397.88

$397.88

$390.64

$390.64 - $390.64

$390.64

by Parker Hannifin
Universal Series:6402 2/2 In-Line Ball Valve for Screw Fixing, Female BSPP Thread

Package Quantity: 2 Units

Quantity

Specifications for Variant SKU: 6402 20 27 Parker \| 2 \|
Series:	6402 Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass, Rilsan Graphited, ZAMAK
Seal Material(s):	Buna-N/Nitrile Rubber
Special Properties:	Silicone Free, Vacuum Resistance, Repositionable Handle, Exchangeable Handle

Technical Characteristics:	Compatible Fluids: Compressed air Working Pressure: Vacuum up to 40 bar, depending on the model Working Temperature: -20°C to +80°C up to -40°C with no handle operation
Advantages:	Automatic seal wear compensation Vacuum resistance Ease of operation Short, repositionable and exchangeable handles
Regulations:	RoHS PED REACH
Component Materials:	Body: Nickel-plated brass Stem: NBR Stem seal: NBR Seat seal: Graphite-impregnated polyamide Ball: Nickel-Plated Polished Brass Locking Nut: Nickel-plated brass Wear-compensation seal: NBR Lever: Treated Zamak Lever fixing screw: Zinc-Plated Steel


Part Number	Diameter Nominal (DN)	C	E	F	F1	G	H1	H2	L	L1	M	N	T	Kg
6402 04 10	4 mm	1/8"	8 mm	14 mm	14 mm	18 mm	18 mm	30 mm	44 mm	25 mm	48 mm	25 mm	470	.132 Kg
6402 07 13	7 mm	1/4"	12 mm	19 mm	19 mm	19 mm	24 mm	31 mm	53 mm	28 mm	48 mm	31 mm	580	.216 Kg
6402 10 17	10 mm	3/8"	12 mm	24 mm	24 mm	20 mm	30 mm	45 mm	59 mm	31 mm	69 mm	31 mm	580	.324 Kg
6402 13 21	13 mm	1/2"	15 mm	27 mm	27 mm	20 mm	34 mm	47 mm	67 mm	34 mm	69 mm	34 mm	6100	.404 Kg
6402 20 27	20 mm	3/4"	16.5 mm	32 mm	38 mm	27 mm	44 mm	52 mm	80 mm	39 mm	108 mm	43 mm	8125	.830 Kg
6402 23 34	23 mm	1"	19 mm	41 mm	46 mm	27 mm	53 mm	56 mm	94 mm	47 mm	108 mm	51 mm	8125	1.290 Kg

Maximum working pressure: 40 bar
