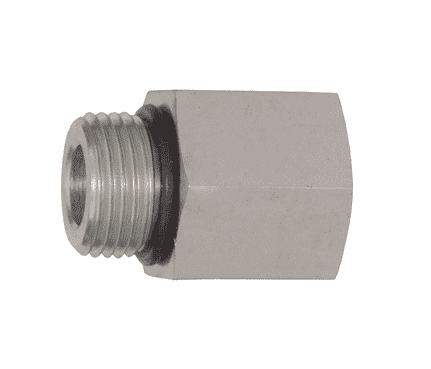

6405-6-6 Dixon Zinc Plated Steel 9/16"-18 Male SAE O-Ring Boss x 3/8"-18 Female NPTF Pipe Adapter

6405-6-6 Dixon Valve Zinc Plated Steel 9/16"-18 Male SAE O-Ring Boss x 3/8"-18 Female NPTF Pipe Adapter

Save $0.33 Save $0.33
$2.97
$2.97 - $2.97
$2.97
$2.64
$2.64 - $2.64
$2.64

ORB Fittings - O-Ring to Female Pipe Adapters - Zinc Plated Steel
Specifications for Variant SKU: 6405-6-6 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Male O-Ring Boss, 3/8in Female NPTF
Material(s): Zink-Plated Steel
Features:
  • N/A
Part Number Male SAE O-Ring Boss Female NPTF Pipe Working Pressure Weight (Lbs.)
6405-4-2 7/16"-20 1/8"-27 5000 PSI 0.0420
6405-4-4 7/16"-20 1/4"-18 5000 PSI 0.0790
6405-4-6 7/16"-20 3/8"-18 4000 PSI 0.1060
6405-6-4 9/16"-18 1/4"-18 4000 PSI 0.0800
6405-6-6 9/16"-18 3/8"-18 4000 PSI 0.1070
6405-6-8 9/16"-18 1/2"-14 3000 PSI 0.2200
6405-8-6 3/4"-16 3/8"-18 4000 PSI 0.1300
6405-8-8 3/4"-16 1/2"-14 3000 PSI 0.2570
6405-10-4 7/8"-14 1/4"-18 3000 PSI 0.1200
6405-10-8 7/8"-14 1/2"-14 3000 PSI 0.2470
6405-10-12 7/8"-14 3/4"-14 2500 PSI 0.3000
6405-12-8 1-1/16"-12 1/2"-14 3000 PSI 0.3080
6405-12-12 1-1/16"-12 3/4"-14 2500 PSI 0.3500
6405-12-16 1-1/16"-12 1"-11-1/2 2000 PSI 0.5200
6405-16-12 1-5/16"-12 3/4"-14 2500 PSI 0.4700
6405-16-16 1-5/16"-12 1"-11-1/2 2000 PSI 0.5350
6405-16-20 1-5/16"-12 1-1/4"-11-1/2 1150 PSI 0.8900
6405-20-16 1-5/8"-12 1"-11-1/2 2000 PSI 0.3400
6405-20-20 1-5/8"-12 1-1/4"-11-1/2 1150 PSI 0.7660
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
