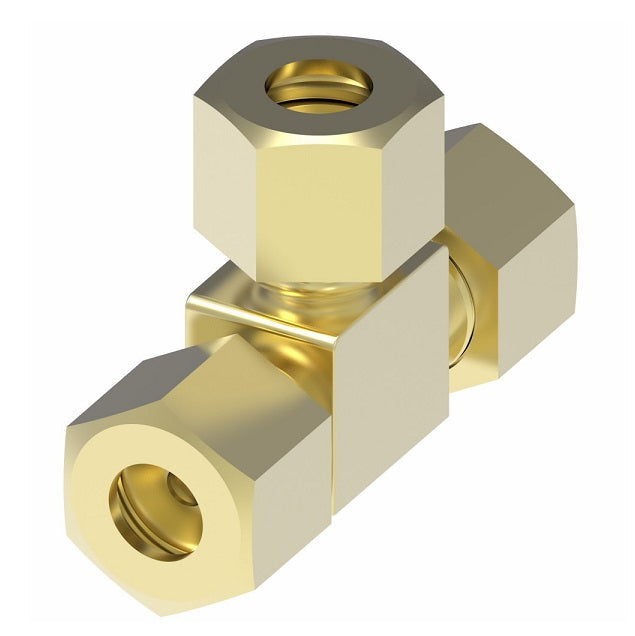

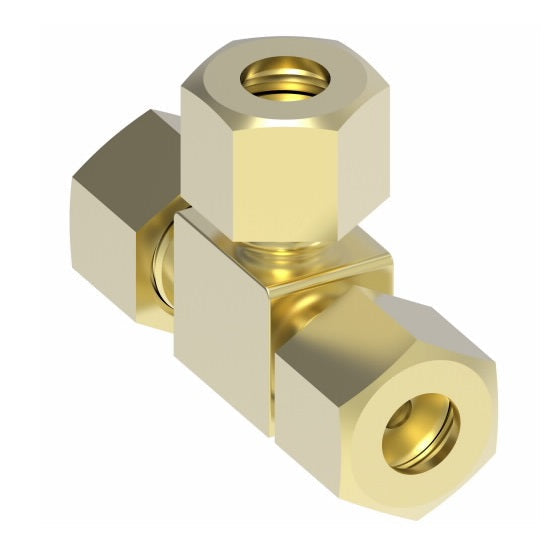

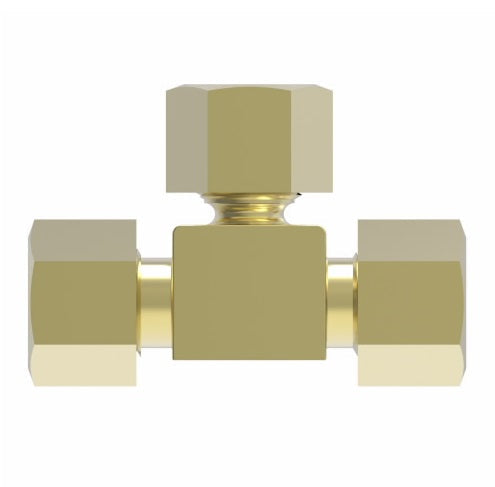

641X8 by Danfoss | SelfAlign Adapter | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Brass
641X8 by Danfoss | SelfAlign Adapter | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Brass
641X8 by Danfoss | SelfAlign Adapter | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Brass
641X8 by Danfoss | SelfAlign Adapter | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Brass

641X8 by Danfoss | SelfAlign Adapter | Union Tee | 1/2" Tube OD x 1/2" Tube OD x 1/2" Tube OD | Brass

$32.79 - $32.79
$32.79
$32.79 - $32.79
$32.79

Aeroquip® by Danfoss
SelfAlign Adapter - Union Tee
SelfAlign End x SelfAlign End x SelfAlign End
Specifications for Variant SKU: 641X8 Danfoss
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression, 1/2in Tube Compression, 1/2in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Very low cost and reusable.
  • Self aligning - no need to disassemble fitting to line up sleeve on tube.
  • Low cost.
  • Easy to assemble, no flaring.
  • Good vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing.
  • Plastic tubing, except for PT230 and TP160, requires 2030x insert.
  • Not recommended for steel tubing.
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • An exclusive product design, user approvals only
Brass
Part Number		 Tube O.D. D M
641X3 3/16" 0.125" 0.60"
641X4 1/4" 0.188" 0.62"
641X6 3/8" 0.312" 0.73"
641X8 1/2" 0.406" 0.94"
