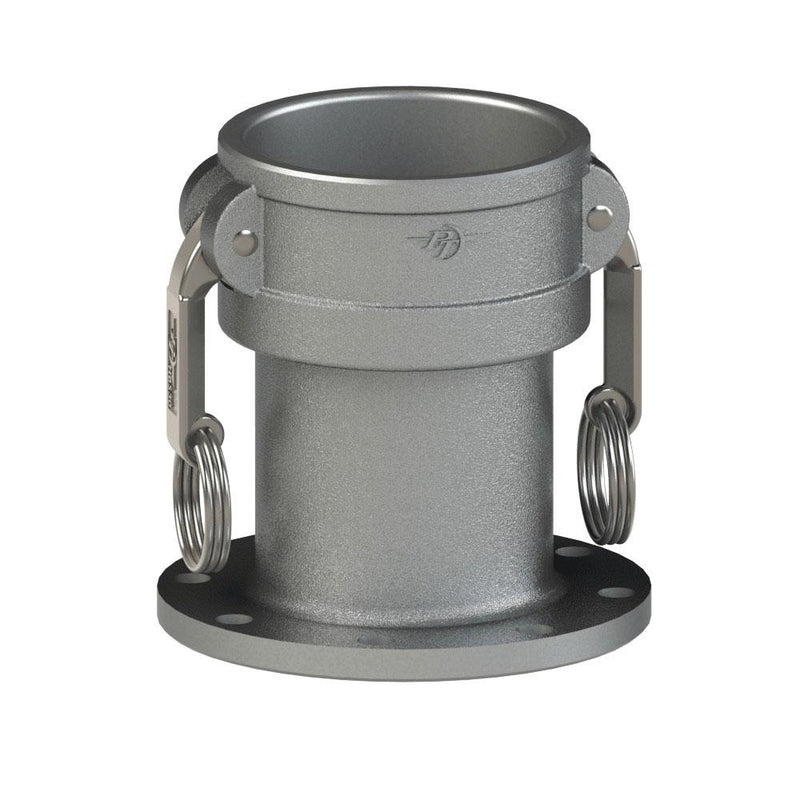

64583000 (TTF30C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 3" Coupler x 3" TTMA Flange | Stainless Steel

64583000 (TTF30C) by PT-Coupling | Petroleum Handling Cam & Groove Adapter | Type TTFC | 3" Coupler x 3" TTMA Flange | Stainless Steel

Save $267.16 Save $267.16
$719.73
$719.73 - $719.73
$719.73
$452.57
$452.57 - $452.57
$452.57

PT Coupling
Petroleum Handling Cam & Groove (Camlock) Adapter | Type TTFC | Coupler x TTMA Flange | Stainless Steel

PT Coupling’s petroleum handling fittings support all stages of fuel production and transport, from refining to tank trucks. Also compatible with bio-fuel applications.

Made in the USA.
Specifications for Variant SKU: 64583000 PT-Coupling
Series: Petroleum Handling
Shape (Orientation): Straight
Cam Type: Other
Ends Configuration: 3in Female Cam & Groove, 3in TTMA Flange
Material(s): Stainless Steel
Overview:
  • PT Coupling's petroleum handling fittings are used in all phases of petroleum manufacturing, transportation and logistics. They serve important roles in fuel transportation, from refining applications to tank trucks, and much more. They are also suited to work with the emerging bio-fuel industry.
Features & Applications:
  • Tank Truck Flanges conform to (TTMA) Truck Trailer Manufacturers Assoc. standards.
  • Excellent corrosion-resistant material that provides high strength at high temperatures, helps prevent contamination of product being transported, maintains cleanliness and retains a lustrous appearance. Harder than brass.
  • Ideal for use with salt water, waste water, and many chemicals; can also be used with hydraulic oil and coolants.
  • Made in the USA
Part
Name		 Item # Coupler
Size		 Flange
Size
(TTMA)		 O. D. with
Cam Arms
Extended
(A)		 Overall
Length
(C)		 Inside
Diameter
(E)		 Outside
Diameter
(F)		 Bolt Hole
Diameter
(J)		 Number
of Holes
(K)		 Bolt Circle
Diameter
(L)		 Max. Allowable
Working Press.
(PSI)*
TTF30C 64583000 3" 3" 9.56" 5.66" 2.90" 5.63" 0.44" 8 4.88" 200 PSI
TTF40C 64584000 4" 4" 10.66" 5.68" 3.60" 6.63" 0.44" 8 5.88" 150 PSI

* Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
