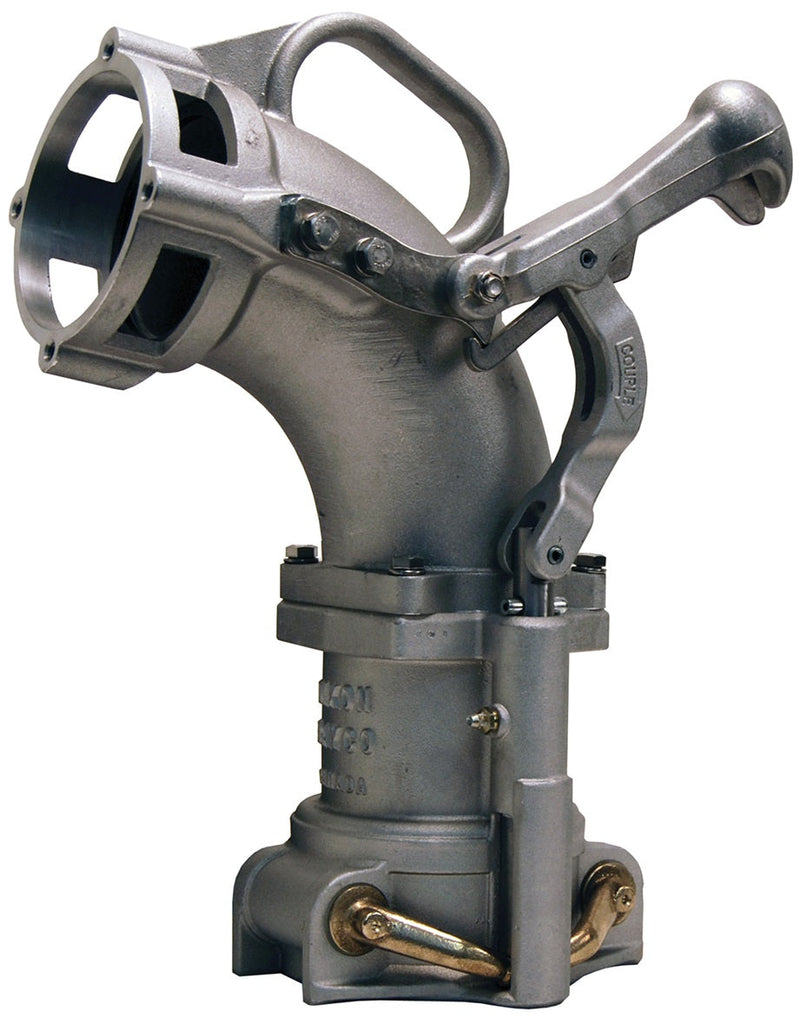

6500 by Dixon Valve | 6500-Series | Self-Locking Drop Elbow | 4" Size | Tightfill Elbow With Locking Handle | Aluminum

6500 by Dixon Valve | 6500-Series | Self-Locking Drop Elbow | 4" Size | Tightfill Elbow With Locking Handle | Aluminum

Save $62.35 Save $62.35
$606.90
$606.90 - $606.90
$606.90
$544.55
$544.55 - $544.55
$544.55

Dixon Valve
Tank Truck | 6500-Series | Self-Locking Drop Elbow
Specifications for Variant SKU: 6500 Dixon
Brand: Bayco
Series: 6500-Series
Shape (Orientation): Non-Standard Elbow
Material(s): Aluminum
Features:
  • Most parts are common through the Bayco elbow line, making any necessary maintenance a breeze.
  • Grease nipple enables the greasing of the lever stem, and Acetal bushings help keep everything moving smoothly, even in the harshest of conditions.
  • Bolt on inlets allow the inlet to be changed without having to worry about galling of threaded inlets.
  • Ball lever handle enables the operator to easily and positively engage the locking arms, onto the underground adapter.
  • Heavy duty bolt on arm attachment plate increases the strength of the lever pivot. There are no impact susceptible pivot bolts or casting bosses to break.
  • Arm hinge points use a double yoke design, which increases the arm strength.
  • Built in heavy duty, locking mechanism prevents accidental elbow disconnections while the elbow is in service. No need for the operator to engage the locking mechanism, just move the handle to the closed position and the lock automatically engages. Releasing the lock is equally as easy, just gripping the handle and lifting. The locking mechanism has lots of free clearance so will not be affected by dirt, ice or snow. (Elbow disconnections can occur on other elbow designs, from either operators bumping the release mechanism, or from a hydraulic surge when the underground storage tank overfill valve slams shut.
  • Ergonomic handle can be mounted on either side of the elbow.
Construction:
  • Rugged modular cast aluminum construction.
  • Solid bronze locking arms.
Part Number Size Inlet Overall Height Ground Clearance Fuel Compatibility
6500 4" Tightfill Elbow With Locking Handle 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500C 4" Tightfill Elbow With 3" Inlet Adapter 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500A 4" Tightfill Elbow With Locking Handle And 4" Adapter Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500B 4" Tightfill Elbow With 3" Coupler Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500D 4" Tightfill Elbow With 4" Coupler Inlet 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500T 4" Tightfill Elbow With Locking Handle And Anti-spill Sleeve, Without Inlet Connection 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500AT 4" Tightfill Elbow With Locking Handle, 4" Inlet Adapter And Anti-Spill Sleeve 17-3/4" 10-7/8" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500X 4" Tall Full Feature Elbow, Without Inlet Connection 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500XA 4" Tall Full Feature Elbow With 4" Inlet Adapter 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500XB 4" Tall Full Feature Elbow With 3" Coupler Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6500XD 4" Tall Full Feature Elbow With 4" Coupler Inlet 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6200XAT 4" Tall Elbow with Locking Handle, 4" Inlet Adapter and Anti-Spill Sleeve 21" 13-3/4" Gasoline, Diesel, USLD, E10, E20, E85, E100, B2, B20
6530A 4" 3" Tightfill Elbow with 4" Inlet Adapter 15" 9-1/2" Biofuel compatible up to E100 (100% Ethanol) and B20 (20% Bio Diesel)
6530B 3" 3" Tightfill Elbow with 3" Coupler Inlet 15" 9-1/2" -
6530C 4" 3" Tightfill Elbow with 3" Inlet Adapter 15" 9-1/2" Biofuel compatible up to E100 (100% Ethanol) and B20 (20% Bio Diesel)
6530D 3" 3" Tightfill Elbow with 4" Coupler Inlet 15" 9-1/2" -
6530LA 3" 3" Tightfill Elbow with 4" Inlet Adapter and Locking Handle 15" 9-1/2" -
112449 3" Tightfill Elbow Main Gasket 3" - - -
