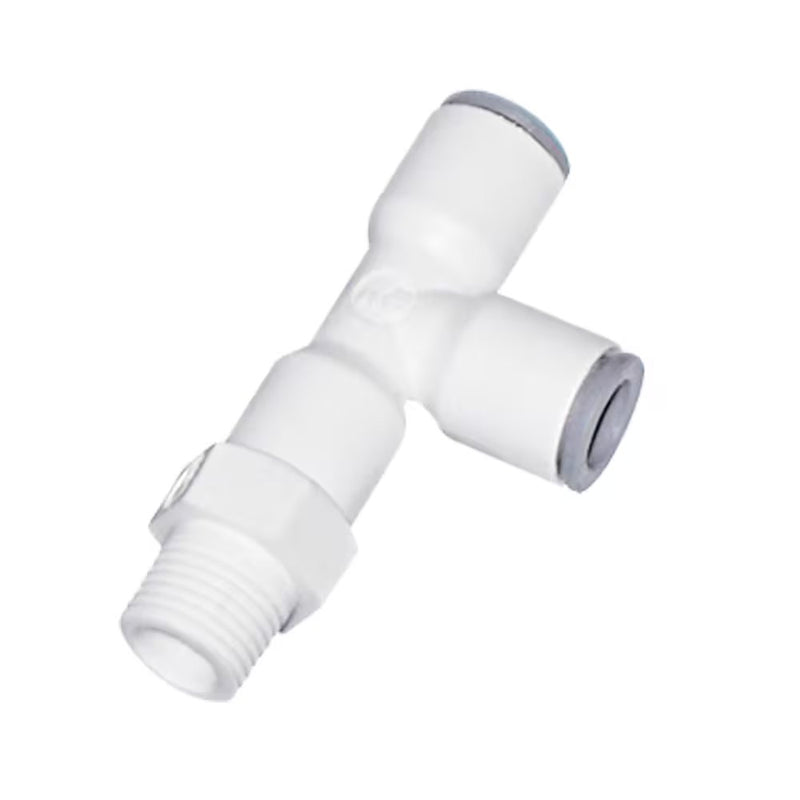

6503 08 13WP2 by Parker | Legris Stud Swivel Fitting | 8 mm Tube Size x 1/4" Male BSPT Thread | Tee | Polymer | Pack of 10

Save $36.80

$92.00

$92.00 - $92.00

$92.00

$55.20

$55.20 - $55.20

$55.20

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6503 Run Tee, Male BSPT Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6503 08 13WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6503 Series
Shape (Orientation):	Tee
Material(s):	Polymer, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Swivel, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	C	F	G	H	H1	L	Kg
6503 06 13WP2	6 mm	1/4"	14 mm	10.5 mm	40 mm	22 mm	18.5 mm	.009 Kg
6503 08 13WP2	8 mm	1/4"	19 mm	13.5 mm	50 mm	27 mm	23 mm	.013 Kg

Thread without pre-coating, the body swivels for positioning purposes.
