65784API by Midland | API Line Pipe Coupling | 8" Female NPT x 8" Female NPT | Straight | Black Steel

65784API by Midland | API Line Pipe Coupling | 8" Female NPT x 8" Female NPT | Straight | Black Steel

Save $62.61 Save $62.61
$402.51
$402.51 - $402.51
$402.51
$339.90
$339.90 - $339.90
$339.90

Midland Industries

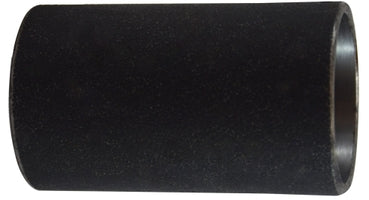

API Line Pipe Coupling - A105 Black Steel Taper Tapped Coupling

These couplings are manufactured in accordance with American Petroleum Institute specifications 5L & 5B.

Inventory @ Manufacturers Warehouse: 22 Units
Specifications for Variant SKU: 65784API Midland
Shape (Orientation): Straight
Ends Configuration: 8in Female NPT, 8in Female NPT, Some Ends Match
Material(s): Black Steel
Applicable Specs & Approvals: American Petroleum Institute Specs 5L & 5B
Features:
  • All couplings are phosphated.
  • All sizes are taper tapped 3/4" per foot on the diameter.
  • Black Steel
  • API line API SL
  • Each end has a short, unthreaded recess before the threads start.
  • Use with sch 80 & sch. 160 nipples & pipe.
  • Max. Pressure: 3000 PSI
Specifications:
  • Certified by the American Petroleum Institute
  • Manufactured in accordance with American Petroleum Institute specifications 5L & 5B.
Part Number Female NPT Size Thread Per Inch Outside Diameter Length Unit Weight
lbs.
65770API 1/8" 27 0.563" 1-1/16" 0.04
65771API 1/4" 18 0.719" 1-5/8" 0.10
65772API 3/8" 18 0.875" 1-5/8" 0.13
65773API 1/2" 14 1.063" 2-1/8" 0.24
65774API 3/4" 14 1.313" 2-1/8" 0.35
65775API 1" 11.5 1.576" 2-5/8" 0.52
65776API 1-1/4" 11.5 2.054" 2-3/4" 1.00
65777API 1-1/2" 11.5 2.200" 2-3/4" 0.88
65778API 2" 11.5 2.875" 2-7/8" 1.83
65779API 2-1/2" 8 3.375" 4-1/8" 3.28
65780API 3" 8 4.000" 4-1/4" 4.09
65781API 4" 8 5.200" 4-1/2" 7.59
65783API 6" 8 7.390" 4-5/8" 12.92
65784API 8" 8 9.625" 5-3/4" 23.18
Midland Industries

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
