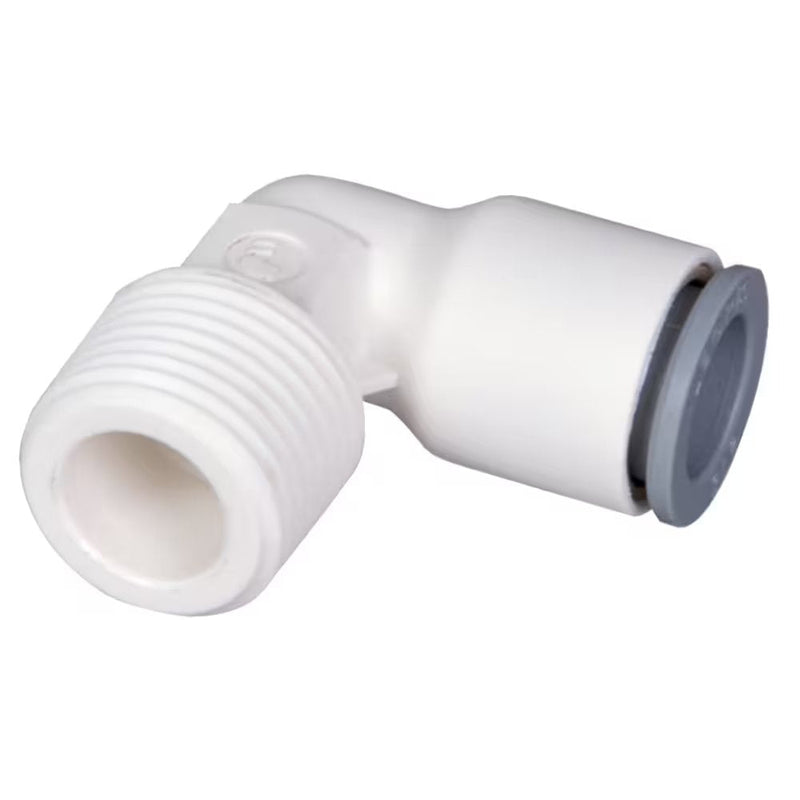

6579 56 18WP2 by Parker | Legris LIQUIfit® Threaded Fitting | 1/4" Push-to-Connect x 3/8" Male NPTF Thread | 90° Elbow | Nylon | Pack of 10

Save $1.39

$21.26

$21.26 - $21.26

$21.26

$19.87

$19.87 - $19.87

$19.87

by Parker Hannifin
LIQUIfit® Push-In Fittings / Stud Fittings:6579 Fixed Fitting, Male NPTF Thread

Package Quantity: 10 Units

Quantity

Specifications for Variant SKU: 6579 56 18WP2 Parker \| 10 \|
Brand:	LIQUIfit®
Series:	6579 Series
Shape (Orientation):	90° Elbow
Material(s):	Nylon, Stainless Steel
Seal Material(s):	EPDM
Special Properties:	Food Grade, Silicone Free, Bisphenol Free, Phthalate Free

Pressure and Temperature of the different diameters and related products of the LIQUIfit® Range
Technical Characteristics:	Compatible Fluids: Water, beverages, CO2 (inert use) Working Pressure: Vacuum to 16 bar Working Temperature: -10°C to +95°C -20° to +70°C for 16 mm to 10 bar
Advantages:	Bio-sourced polymer meeting food process regulations Compliant with FDA, NSF, DM174, KTW, ACS standards Easy-to-clean external surfaces Free of bisphenol and phthalates
Regulations:	RoHS REACH FDA: 21 CFR NSF: 51 NSF 61 - C HOT 1935/2004 DM 174 ACS KTW
Component Materials:	Body and Adapter: Bio-Based Polymer Grey Release button: Technical Polymer Gripping ring or collet (6501 and 6599): Stainless Steel Seal: EPDM


Part Number	ØD	C	G	H (mm)	J (mm)	L (mm)	H (in)	J (in)	L (in)	Kg
6579 56 11WP2	1/4"	1/8"	11 mm	22 mm	38 mm	18 mm	-	-	-	.009 Kg
6579 56 14WP2	1/4"	1/4"	11 mm	26 mm	38 mm	18 mm	-	-	-	.003 Kg
6579 56 18WP2	1/4"	3/8"	-	-	-	-	3/8"	.54"	.71"	-
6579 60 14WP2	3/8"	1/4"	16 mm	32 mm	12 mm	26 mm	-	-	-	.006 Kg
6579 60 18WP2	3/8"	3/8"	-	-	-	-	1/2"	.77"	1.02"	-

Thread without pre-coating.
