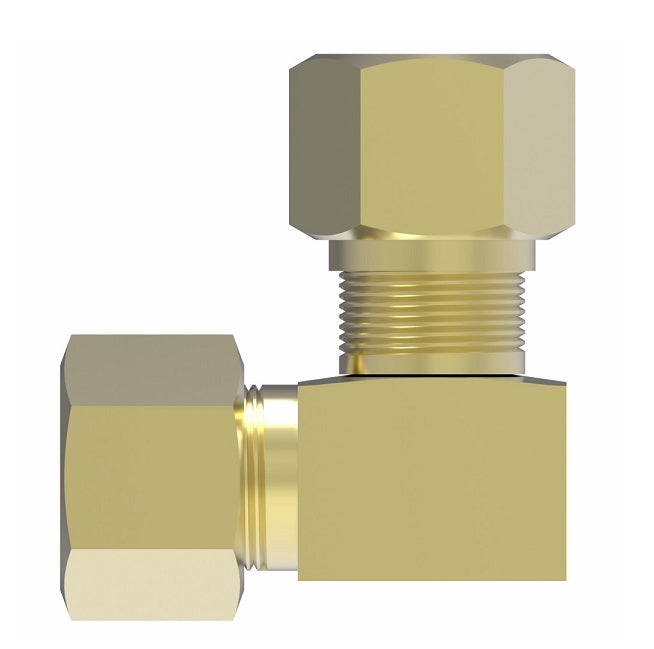

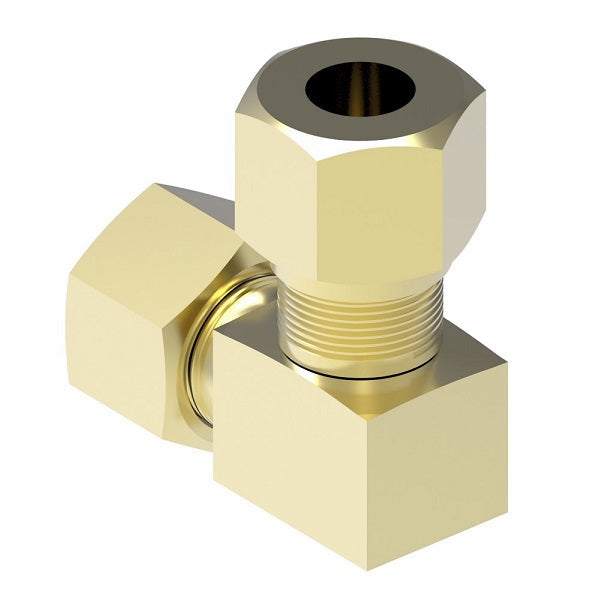

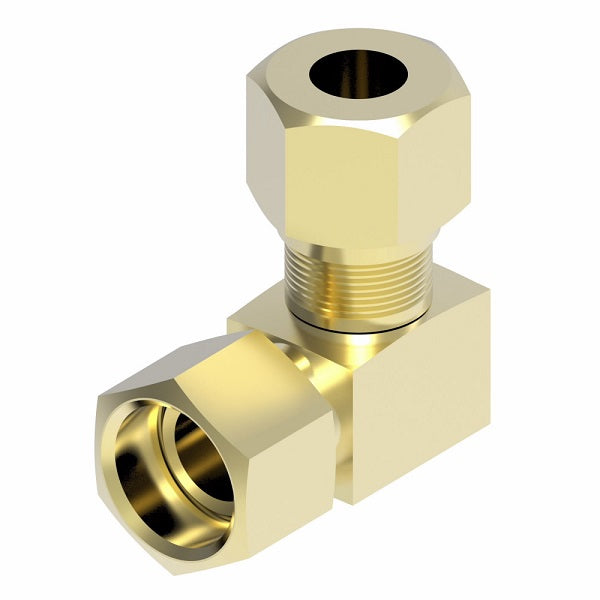

65X4 by Danfoss | Compression Fitting | Union 90° Elbow | 1/4" Tube OD | Brass
65X4 by Danfoss | Compression Fitting | Union 90° Elbow | 1/4" Tube OD | Brass
65X4 by Danfoss | Compression Fitting | Union 90° Elbow | 1/4" Tube OD | Brass
65X4 by Danfoss | Compression Fitting | Union 90° Elbow | 1/4" Tube OD | Brass

65X4 by Danfoss | Compression Fitting | Union 90° Elbow | 1/4" Tube OD | Brass

$8.14 - $8.14
$8.14
$8.14 - $8.14
$8.14

Aeroquip® by Danfoss
Compression Fitting - Union
Compression End x Compression End
90° Elbow
Specifications for Variant SKU: 65X4 Danfoss
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Tube Compression, 1/4in Tube Compression, Some Ends Match
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Low cost.
  • No flaring.
  • Easy to assemble.
  • Fair vibration resistance - use long nut when greater vibration resistance is needed.
Used With:
  • Aluminum, copper and plastic tubing. (Not recommended for steel tubing.)
Material:
  • CA360 Brass
Pressure:
  • Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size.
  • When using plastic tubing, use the working pressure for type used.
Temperature Range:
  • 65°F to +250°F (-53°C to +121°C) with metal tubing.
  • When using compatible plastic tubing do not exceed the tubing temperature range.
Conformance:
  • Ref. SAE No. 060201BA
  • Meets specifications and standards of ASA, ASME and SAE.
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4" 1"
Thread Size 5/16-24 3/8-24 7/16-24 1/2-24 9/16-24 5/8-24 11/16-20 13/16-18 1-18 1-1/4-18
Brass
Part Number		 Brass
Body Only
Part Number 		Tube O.D. D M
65X4 B65X4 1/4" 0.188" 0.60"
65X5 B65X5 5/16" 0.250" 0.62"
65X6 B65X6 3/8" 0.312" 0.75"
65X8 B65X8 1/2" 0.406" 0.94"
