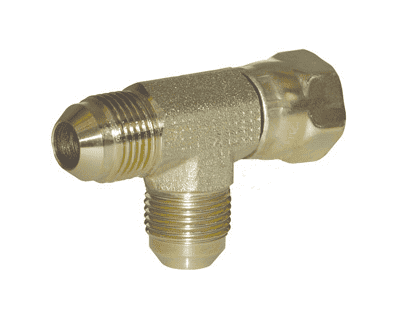

6602-6 Dixon Zinc Plated Steel (Two) 9/16"-18 Male 37 deg. JIC Flare x 9/16"-18 Female 37 deg. JIC Swivel Run Tee

6602-6 Dixon Valve Zinc Plated Steel (Two) 9/16"-18 Male 37 deg. JIC Flare x 9/16"-18 Female 37 deg. JIC Swivel Run Tee

Save $0.61 Save $0.61
$5.46
$5.46 - $5.46
$5.46
$4.85
$4.85 - $4.85
$4.85

SAE / JIC Fittings - Male 37 deg. JIC Flare x Female 37 deg. JIC Swivel Run Tees - Zinc Plated Steel
Specifications for Variant SKU: 6602-6 Dixon
Shape (Orientation): Tee
Ends Configuration: 3/8in Male JIC, 3/8in Male JIC, 3/8in Female JIC, Some Ends Match
Material(s): Zink-Plated Steel
Features:
  • Reference SAE 070432.
Part Number Male (2) 37 deg. JIC Flare Female 37 deg. JIC Swivel Working Pressure Weight (Lbs.)
6602-4 7/16"-20 7/16"-20 4500 PSI 0.0930
6602-6 9/16"-18 9/16"-18 4000 PSI 0.1560
6602-8 3/4"-16 3/4"-16 4000 PSI 0.3000
6602-10 7/8"-14 7/8"-14 3000 PSI 0.4320
6602-12 1-1/16"-12 1-1/16"-12 3000 PSI 0.7150
6602-16 1-5/16"-12 1-5/16"-12 2500 PSI 1.0760
6602-20 1-5/8"-12 1-5/8"-12 2000 PSI 2.0070
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
